Name:Motorized Lab Jack: J01DS60

Product Description

Motorized Lab Jack, Travel 60mm



Features:



*Regular Lab Jack set with stepper motor and RS232 interface, can connect with motion controller conveniently.

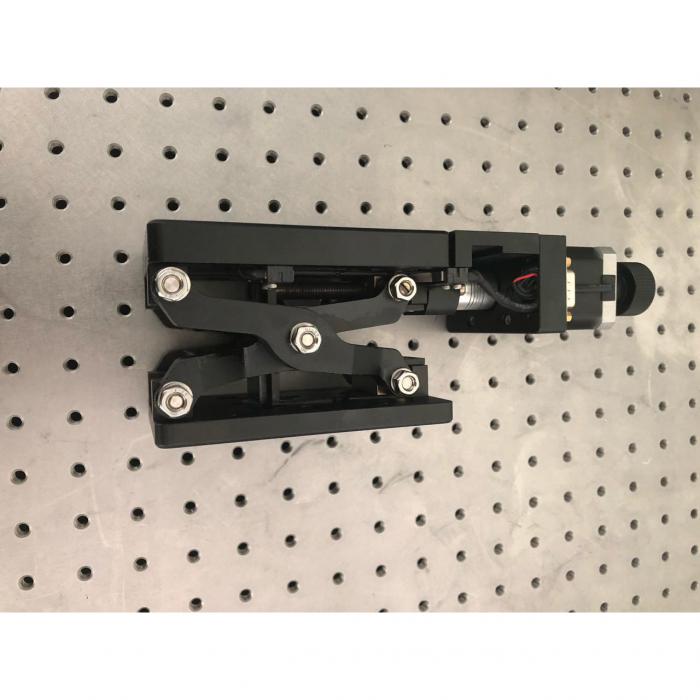

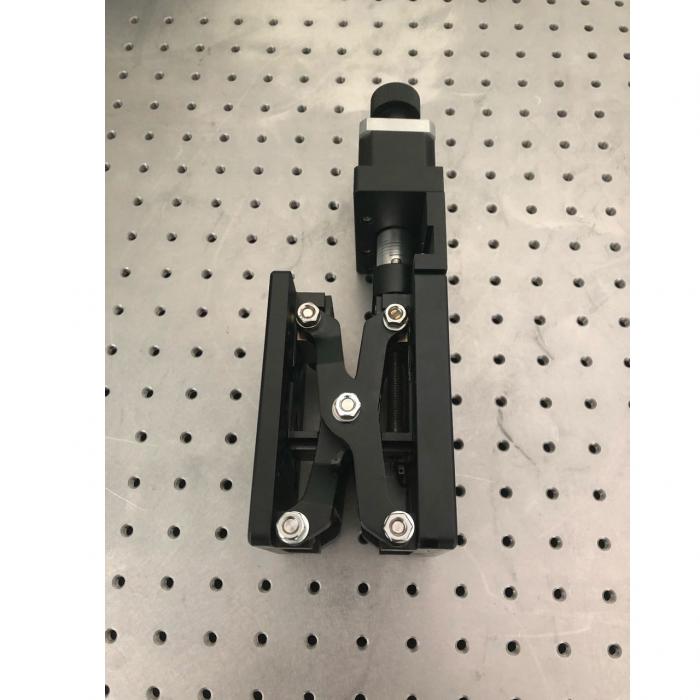

*Fork type mechanical structure for lifting with high stability.

*High accuracy lead screw for high performance and smooth moving

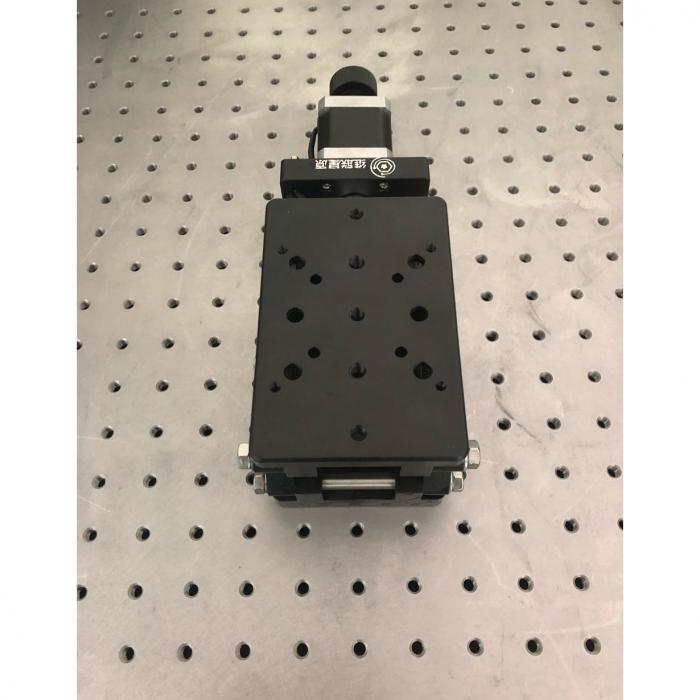

*Mounting holes both on the top and bottom of Lab Jack table for combine with other stages easily

*The Lab Jack can be redesigned.



Model Number

J01DS60

Travel

60+/-2mm

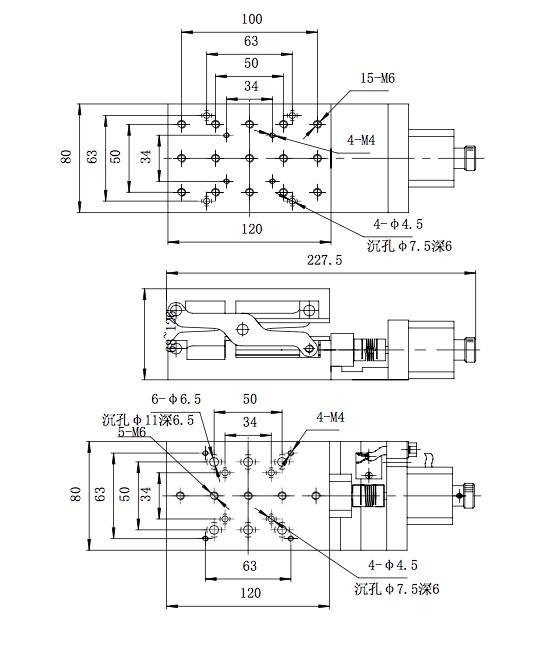

Dimension

120mmx80mm

Driver

Lead screw

Guide

Sliding Guide

Stepper Motor1.8°

SST42D2121

Material

Aluminum

Surface Treatment

Black-Anodized

Loading

10kg

Weight

1.5kg

Min Adjustment

5μmnon-MS drive

0.25μm20-MS drive

Max Speed

5mm/sec

Repeatability

10μm

Backlash

4μm
