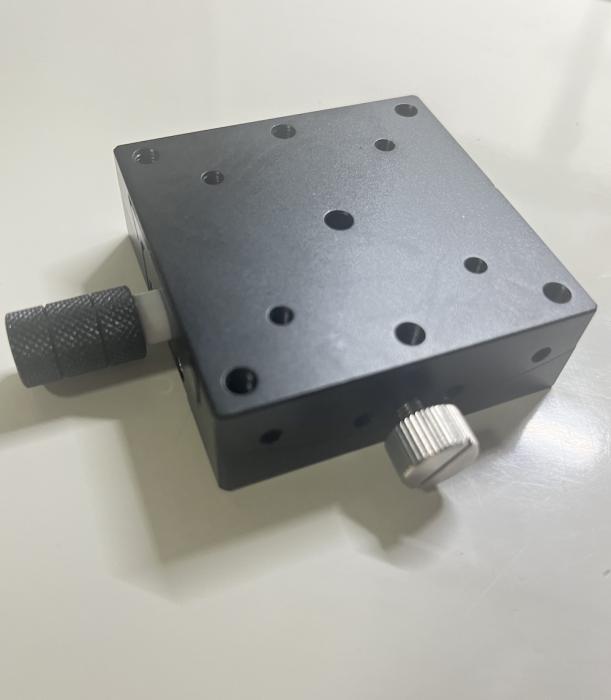

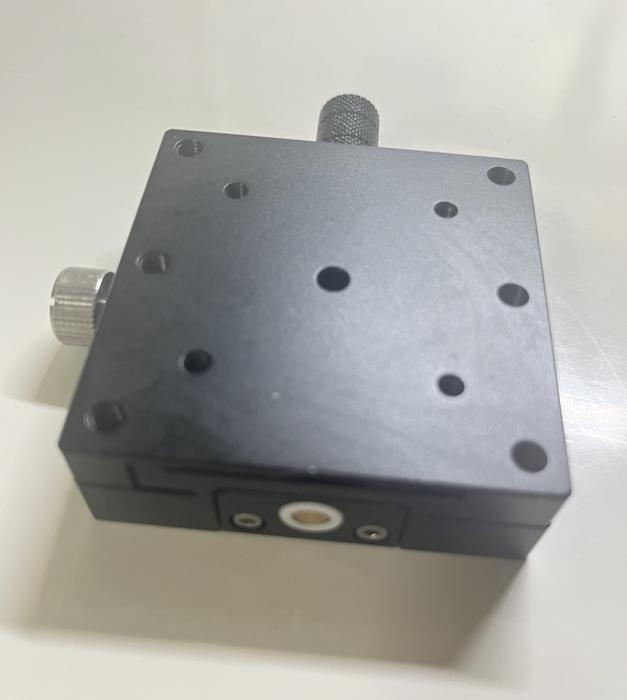

Name:Optical Manual Goniometer Stage: J03SJ10

Product Description

Manual Goniometer Stage, Angle Range +/-10°



Production Feature:



*The Goniometer Stage can rotate in small angle

*Dovetail guide design for Goniometer Stage high loading and accuracy

*The Goniometer Stage rotation center will be same when it use together with J04SJ10

*Wheel screw can fix the Goniometer Stage position

*The Goniometer Stage with regular holes for combine with other products easily



Model Number

J03SJ10

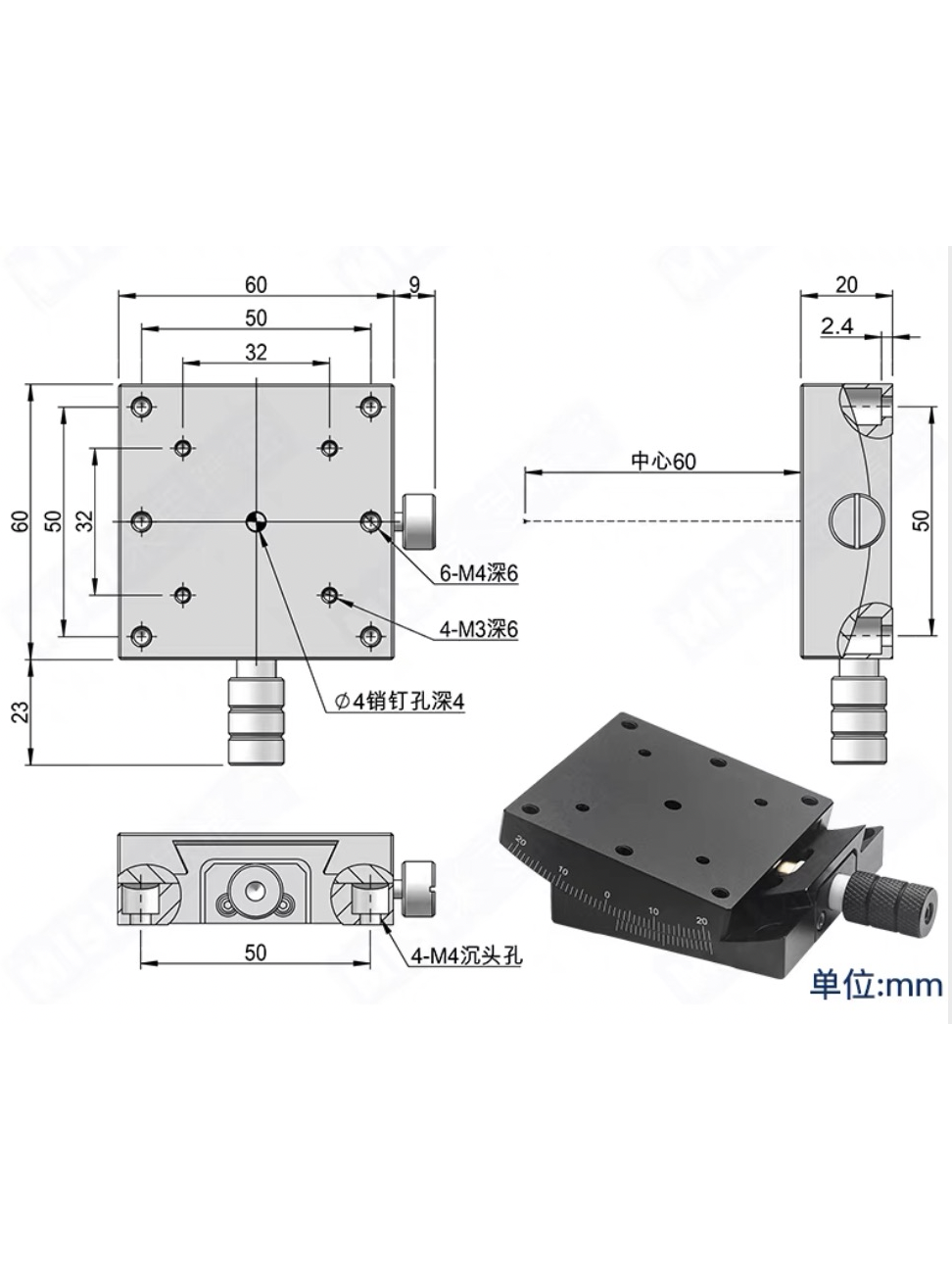

Dimension

65mm x 65 mm

Angle Range

+/-10°

Height of Rotary Center

76 mm

Deviation of Rotary Center

0.05 mm

Drive

Worm Gear

Guide

V Guide + ball screw

Position of Drive

In center

Min Scale

Min Reading

6’

Min Adjustment

30”

Deflection

200”

Tilt

200”

Loading

6kg

Weight

0.46kg

Material

Aluminum

Surface Treatment

Black-Anodized
