  • Manual Lab Jack: J10SS120
Name:Manual Lab Jack: J10SS120

Product Description

Manual Lab Jacks, Travel 120mm



Features:

*The lab jack suitable to use for long travel, high loading adjustment

*Crisscross structure, lead screw driver, double guide position for the smooth moving, high accuracy and loading

*Mounting holes both on lab jack top and bottom for combine with other stages easily

*Hand wheel locking can lock the position



Model Number

J10SS120

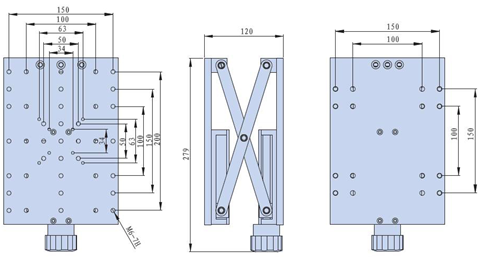

Dimension

165mm x 240mm

Drive

Lead Screw Drive

Travel

120mm

Min Adjustment

5μm

Loading

25kg

Weight

6kg

Material

Aluminum

Surface Treatment

Black-Anodized

lab scissor jack
