Name:Motorized Lab Jack: J05DS120

Product Description

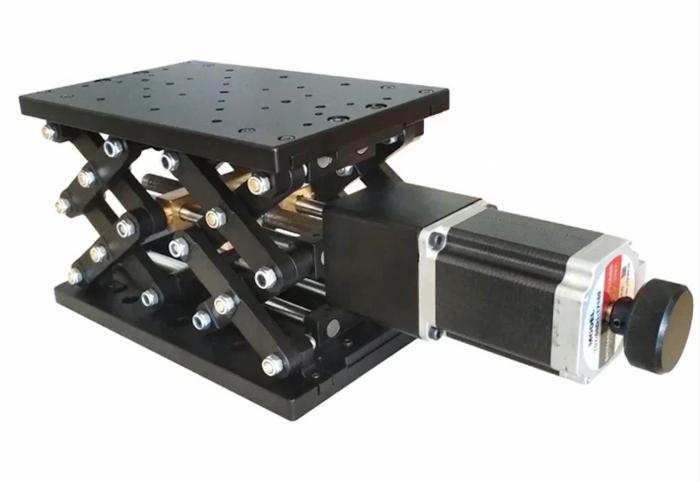

Motorized Lab Jack, Travel 120mm



Features:



*Regular lab jack sets with stepper motor and RS232 interface, can connect with motion controller conveniently.

*Fork type mechanical structure for lifting with high stability.

*High accuracy lead screw for high performance and smooth moving

*Mounting holes both on the top and bottom of lab jack table for combine with other stages easily

*The lab jack can be redesigned.



Model Number

J05DS120

Travel

120+/-2mm

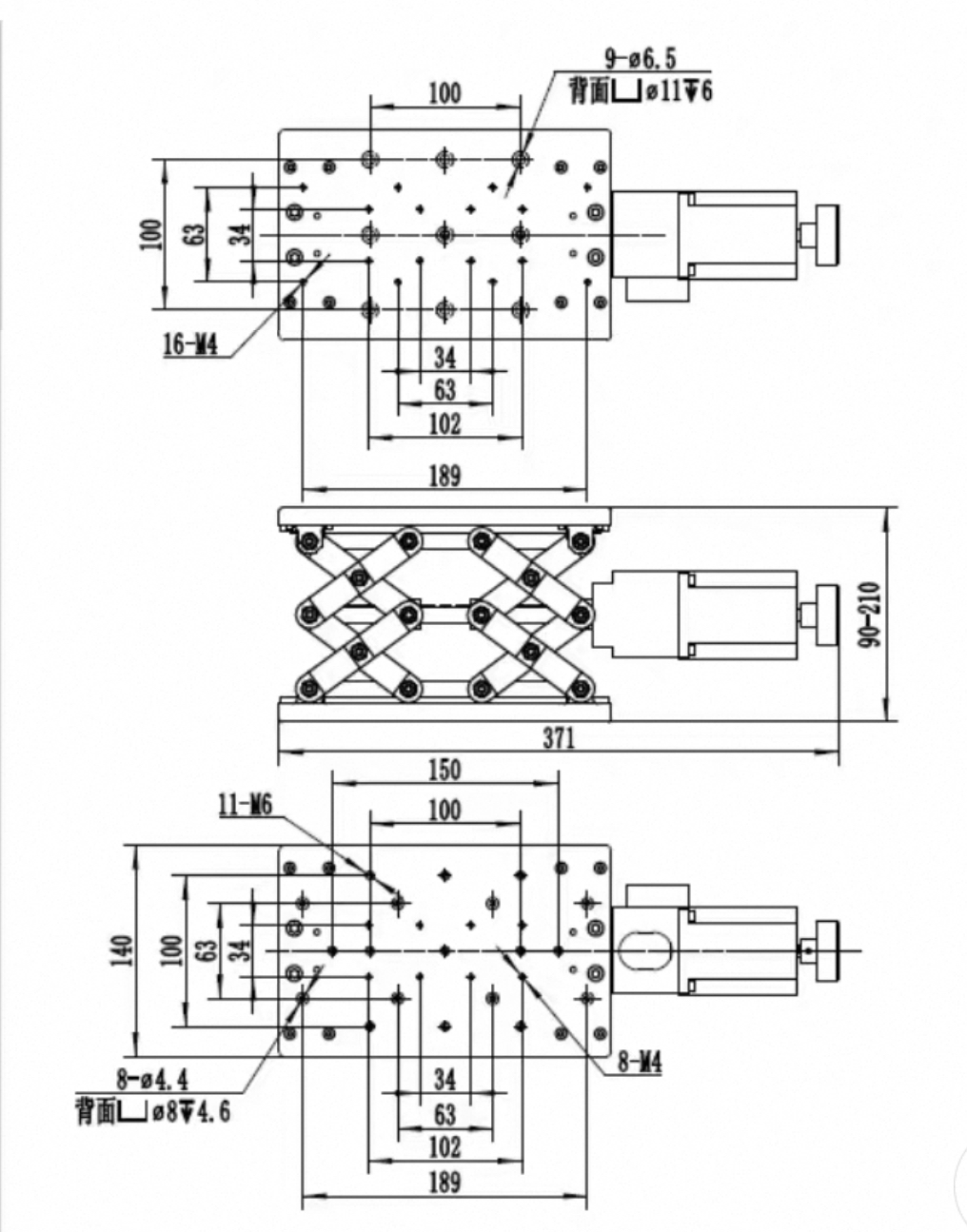

Dimension

240mmx165mm

Driver

Lead screw

Guide

Sliding Guide

Stepper Motor1.8°

SST57D2121

Material

Aluminum

Surface Treatment

Black-Anodized

Loading

20kg

Weight

6.1kg

Min Adjustment

5μmnon-MS drive

0.25μm20-MS drive

Max Speed

5mm/sec

Repeatability

10μm

Backlash

4μm



lab scissor jack
