Product Description

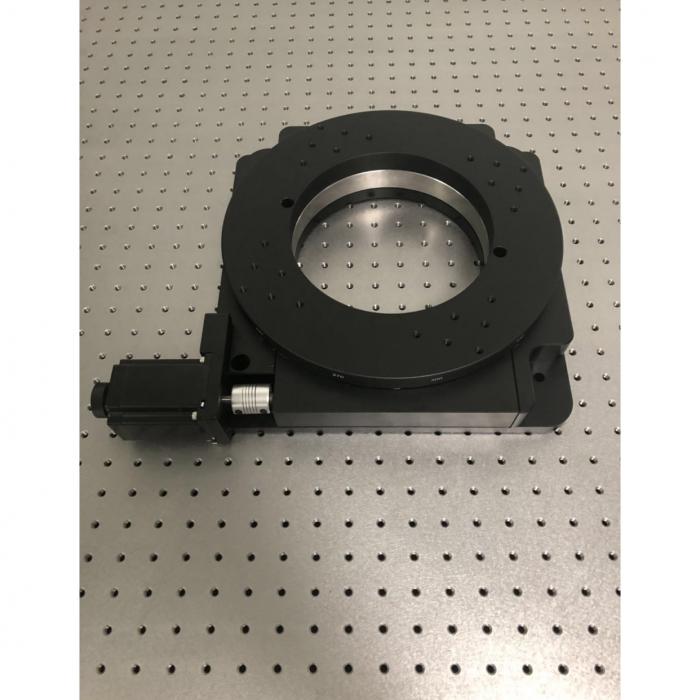

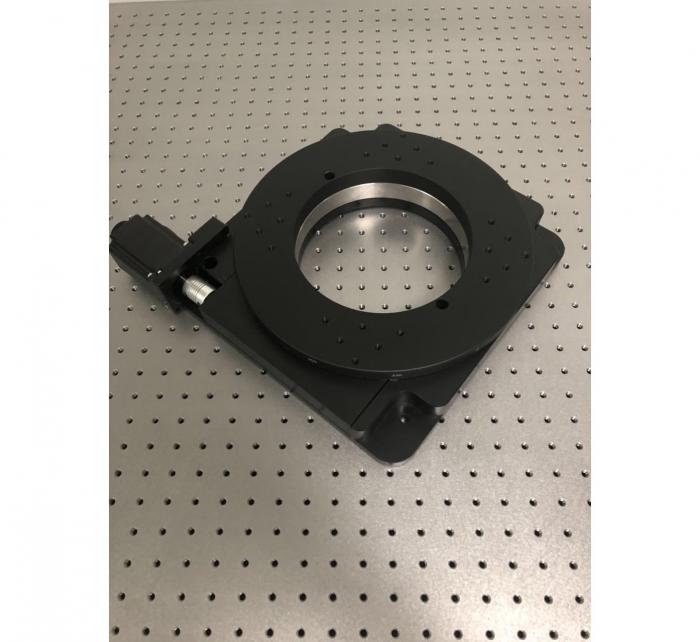

Motorized rotary table (diameter 300mm)
Feature
*Regular rotary table set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision Worm gear design for high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The rotary table could use in vertical and assemble with other stages
Item Number | J04DX300 |
Angle Range | 360° |

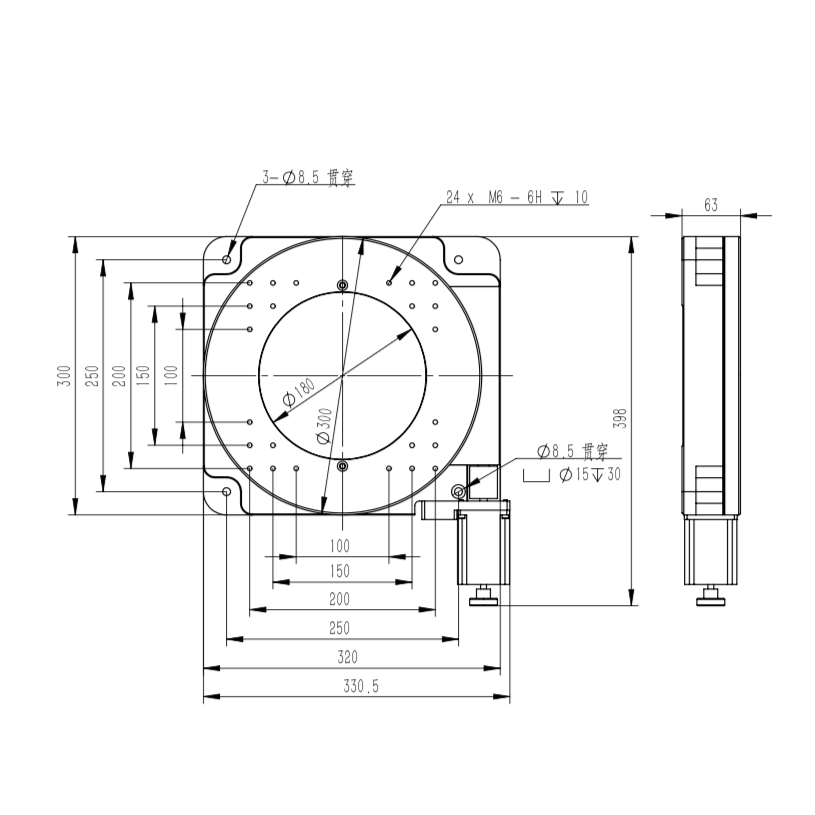

Dimension | diameter 300mm |
Clear Aperture | 160mm |
Worm Gear Ratio | 288:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Working Current | 2.4A |
Stepper Motor(1.8°) | 57 Stepper motor |
Material | Aluminum |
Surface Treatment | Black- Anodized |
Loading | 120kg |
Weight | 12kg |
Resolution | 0.01° non-driver 0.0005° 16 MS driver |
Speed | 12°/sec |
Repeatability | 0.005° |
Run Out of Top | 10μm |
Backlash | 0.005° |
Eccentricity | 0.005° |
Degree of Parallelization | 80μm |
Home Switch | Yes |
