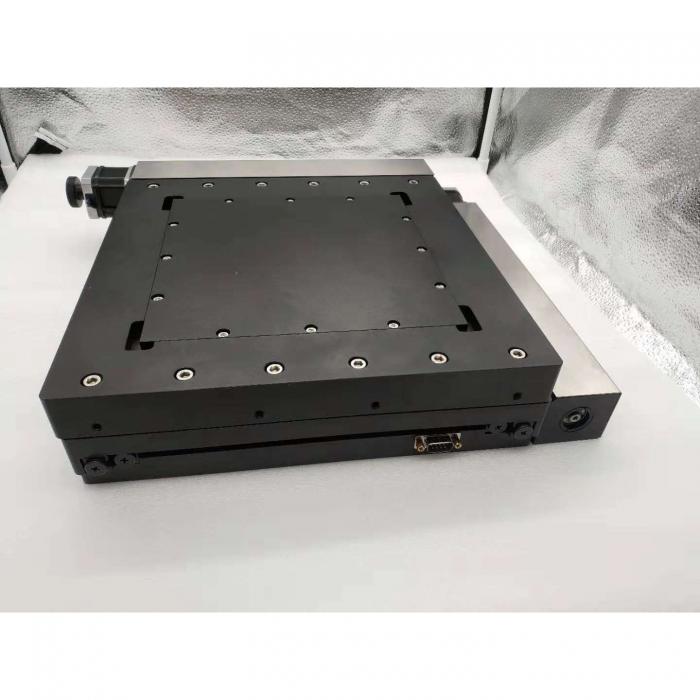

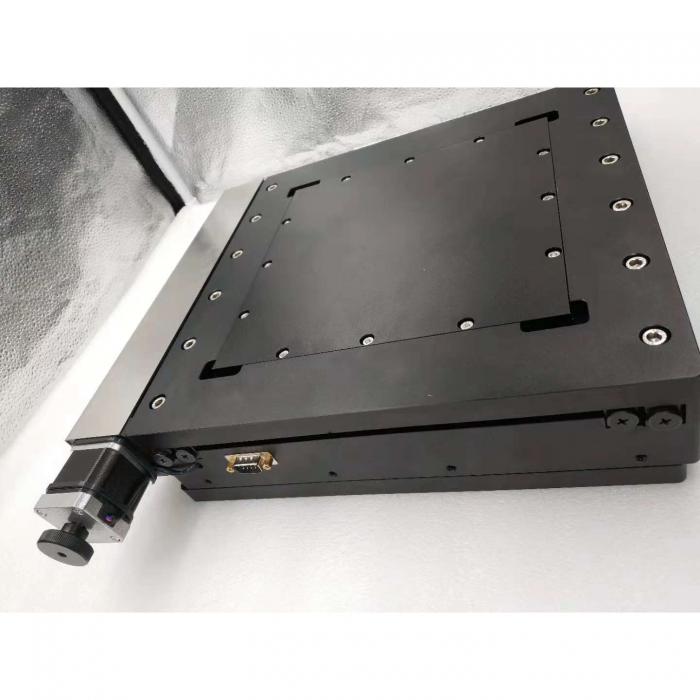

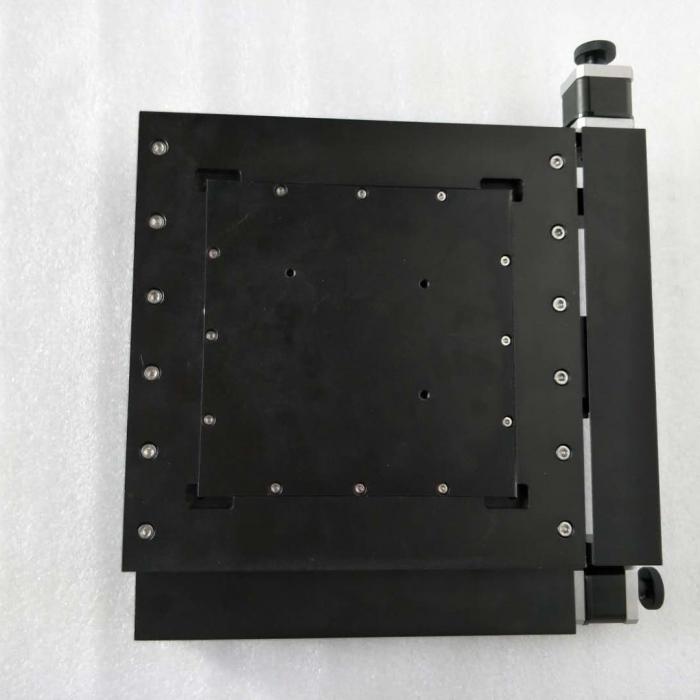

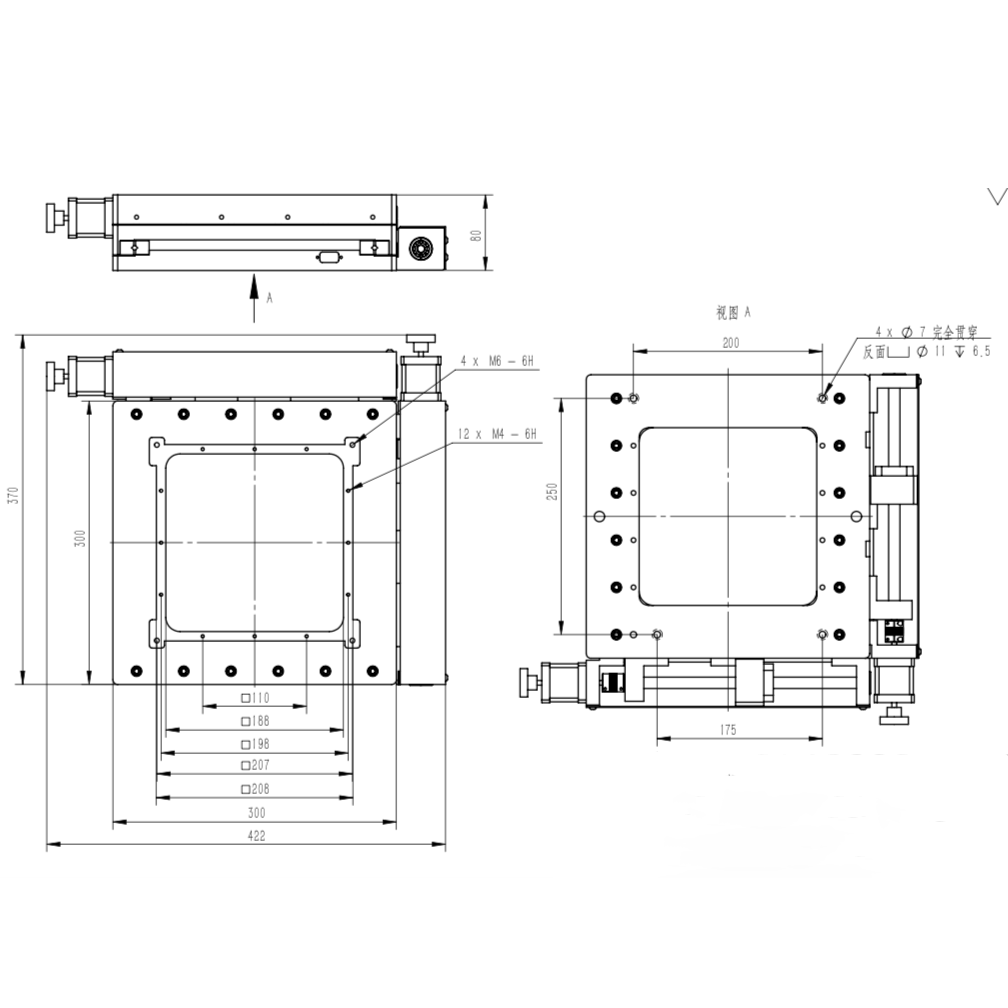

Motorized XY Table, Travel
Range for single axis is 100mm
Features:
1.
Regular xy table set with stepper motor and RS232 interface, can connect with
motion controller convenient.
2.
The xy table design with integrated structure for be used in limited space
3. Taiwan ball screw use for xy table smooth moving and high accuracy
3.
Mounting holes both on the xy table top and bottom for combine with other stage
easily
Model
Number | J03DE100 |
X,
Y Travel Range | 100mm |
Dimension | 300x300mm |
Screw
Type | Ball
Screw(Leading is 1mm) |
Guide | Cross-roller
guide |
Stepper
Motor(1.8°) | STP42D3016 |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
Loading | 40kg |
Weight | 10kg |
Resolution | 20μm,
non-MS driver 1μm,
20 MS driver |
Max
Speed | 20mm/sec |
Repeatability | 2μm |
Accuracy | 3μm |
Straightness | 5μm |
Degree of Parallelization | 15μm |
Pitching | 50” |
Yawing | 25” |
Backlash | 2μm |
Accessories | Servo
Motor and Linear Scale |
