Product Description

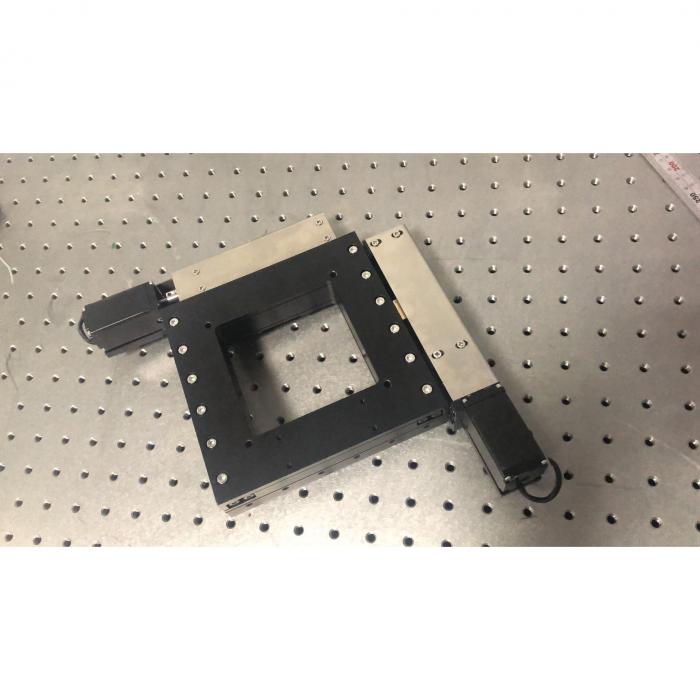

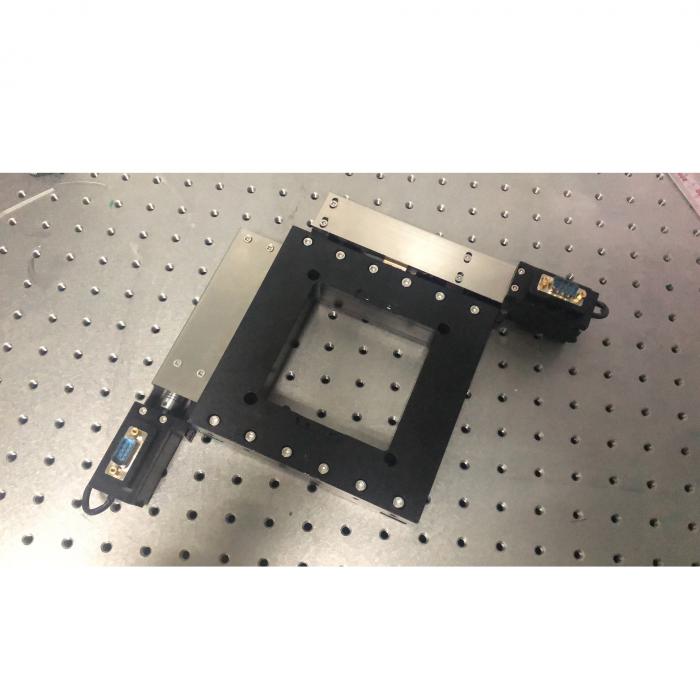

Motorized XY Table, Travel
Range for single axis is 50mm
Features:
1. Regular xy table set with stepper motor and RS232 interface, can connect with motion
controller convenient.
2. The xy table design with integrated structure for be used in limited space
3. Taiwan ball screw use for xy table smooth moving and high accuracy
4. Mounting
holes both on the xy table top and bottom for combine with other stage easily
Model
Number | J02DE50 |
X,
Y Travel Range | 50mm |

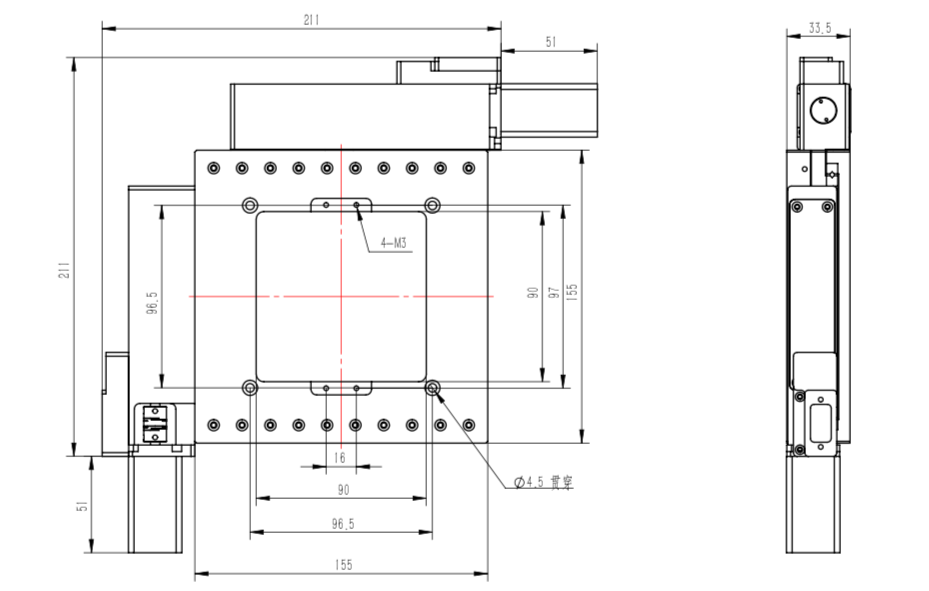

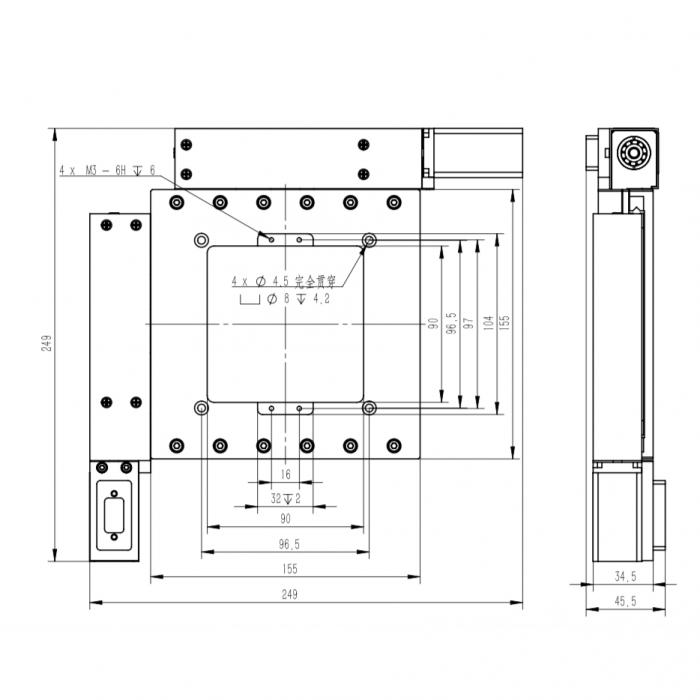

Dimension | 155x155mm |
Screw
Type | Ball
Screw(Leading is 1mm) |
Guide | Cross-roller
guide |
Stepper
Motor(1.8°) | 28STH51 |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
Loading | 20kg |
Weight | 5kg |
Resolution | 5μm,
non-MS driver 0.25μm,
20 MS driver |
Max
Speed | 6mm/sec |
Repeatability | 1.5μm |
Accuracy | 5μm |
Straightness | 5μm |
Degree of Parallelization | 15μm |
Pitching | 50” |
Yawing | 25” |
Backlash | 2μm |
Accessories | Servo
Motor and Linear Scale |
