| Name: | Mmwave Antenna Measurement System |
|---|---|
Product Description

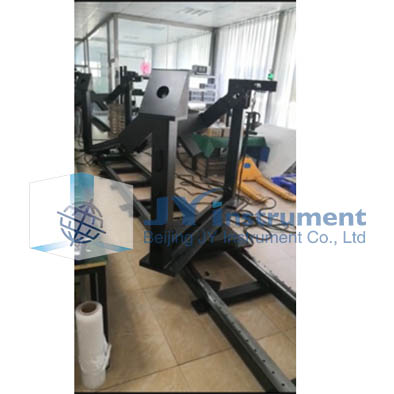

Double Working Station Turntable
Feature:
1. High accuracy and work smoothly
2. Combine manual and motorize
3. Solid Aluminum and other metal structure for maintenance easily.
4. All axes with scale to easy read and the actual movement same with the scale
5. All axes could customize travel range, speed, dimension according to different requests.
Item Number | JDWST2 |
Bottom Manual Linear Axis | Travel Range: 0- 5500mm |
Loading>500kg | |
Locking by manual | |
Bottom Motorized Rotary Axis | Angle Range: 0-350° |
Loading> 200kg | |
Accuracy: 0.05° | |
Side Motorized Rotary Stage | Angle Range: 0-360° |
Loading>130kg | |
Accuracy: 0.1° | |
Top Manual Linear Stage | Travel Range: 0—220mm |
Loading: 100kg | |
Motor | Stepper motor or servo motor with LAN access(connecting port is optional) |
Material | Solid Aluminum |
Surface Treatment | Black- Anodized |
U Structure Width | 1300mm |
