Product Description
Manual Linear Translation Stage
Product Feature:
*High accuracy cross-roller guide for high loading and performance
*Mounting holes both on table top and bottom for connect with other stages easily
Product Type | 90*90 | 100*100 | 120*120 | 200*200 |
Material | Aluminum | Aluminum/ Stainless Steel | Aluminum | Aluminum |
Diver Mode | L/C/R | |||

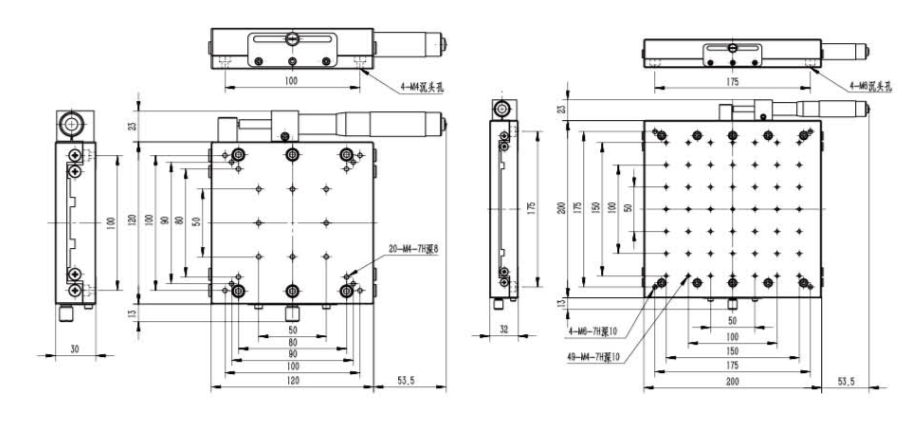

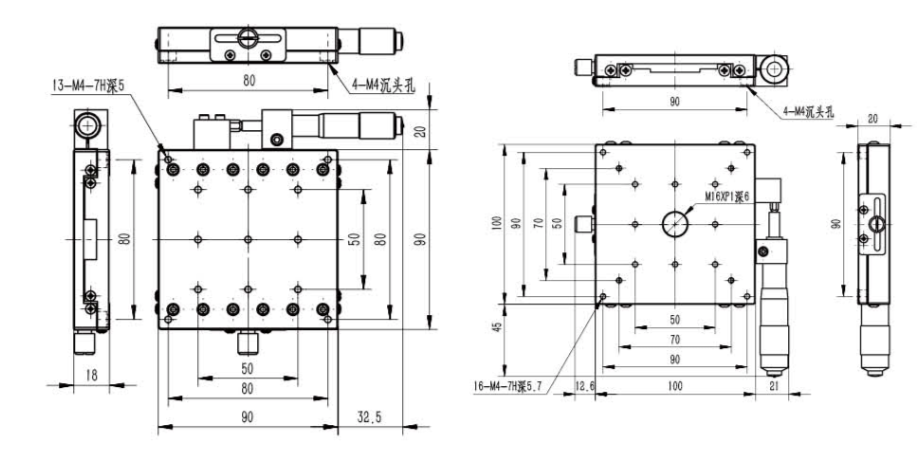

Dimension | 90*90mm | 100*100mm | 120*120mm | 200*200mm |
Thickness | 18/30 | 20/40 | 30/52 | 32*54 |
Travel Range | 13/25 | 25 | 50 | 50 |
Loading(kg) | 10 | 10/35 | 40 | 40 |
Min Scale | 0.01 | |||
Weight | 0.47/0.94 | 1.27/2.54 | 1.52/2.67 | 3.69/6.52 |
