| Name: | Manual Linear Translation Stage: JBX-TX-6-13 |
|---|---|
Product Description
Manual Linear Translation Stage
Product Feature:
*High accuracy cross-roller guide for high loading and performance
*Mounting holes both on table top and bottom for connect with other stages easily

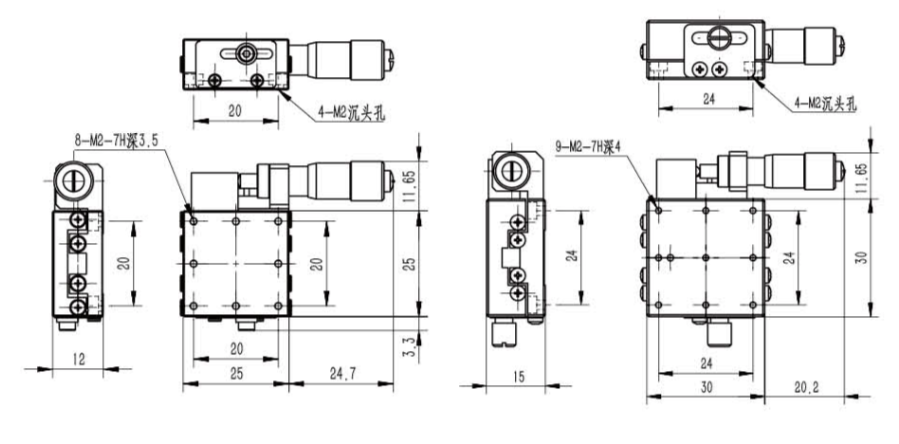

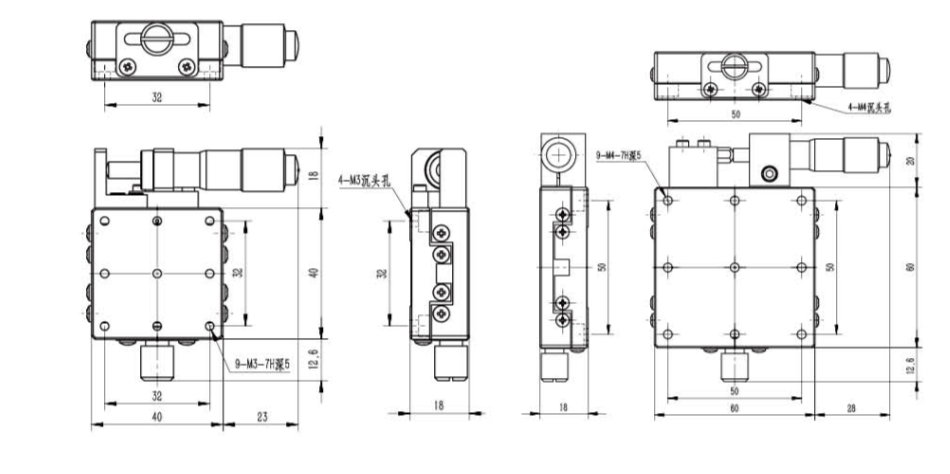

Product Type | 25*25 | 30*30 | 40*40 | 60*60 |
Material | Stainless Steel | Aluminum | Aluminum/ Stainless Steel | Aluminum/ Stainless Steel |
Diver Mode | L/C/R | |||
Dimension | 25*25 | 30*30 | 40*40 | 60*60 |
Thickness | 12/24 | 15/30 | 18/36 | 18/36 |
Travel Range | 6 | 6 | 13 | 13/25 |
Loading(kg) | 4 | 1.5 | 10 | 5/27 |
Min Scale | 0.01 | |||
Weight | 0.07/0.14 | 0.06/0.12 | 0.14/0.28/0.23/0.46 | 0.03/0.06/0.4/0.8 |
