Your Location : Home / Product Center >> Motorized Lab Jacks >> Motorized Lab Jack: J03DS300
| Name: | Motorized Lab Jack: J03DS300 |
|---|---|
Product Description

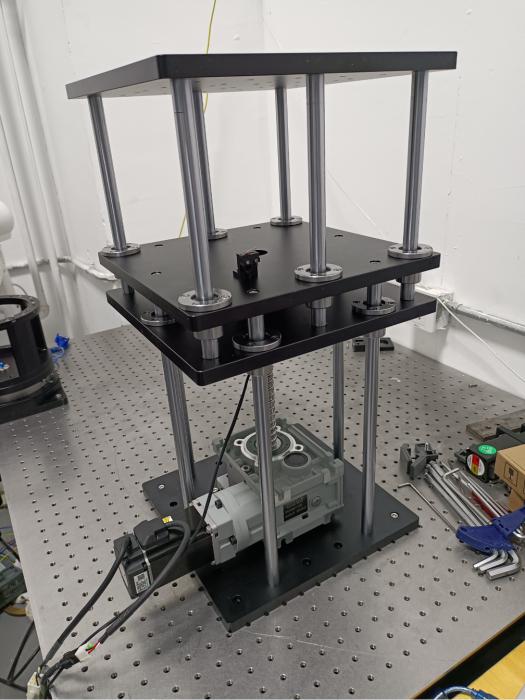

Motorized Lab Jack, Travel 300mm
Features:
*Regular Lab Jack set with stepper motors and RS232 interfaces, can connect with motion
controller conveniently.
*Orthogonal changement and muti-axis support mechanical
structure for Lab Jack lifting with high stability.
*High accuracy lead screw for Lab Jack high performance and
smooth moving
*Mounting holes both on the Lab Jack top and bottom of table
for combine with other stages easily
*The Lab Jack can be redesigned.
Model
Number | J03DS300 |
Travel | 300+/-2mm |

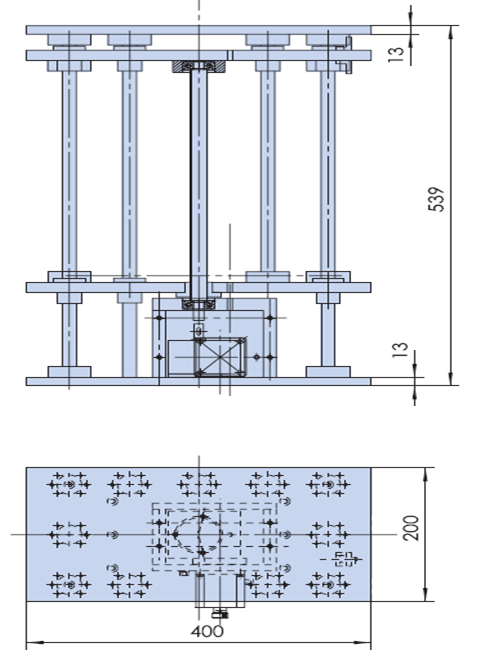

Dimension | 400mmx200mm |
Driver | Lead
screw |
Guide | Sliding
Guide |
Stepper
Motor（1.8°） | SST57D2121 |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
Loading | 50kg |
Weight | 23kg |
Min
Adjustment | 0.75μm（non-MS drive） |
Max
Speed | 2mm/sec |
Reduction
Ratio | 1:25 |
Repeatability | 4μm |
Backlash | 3μm |
