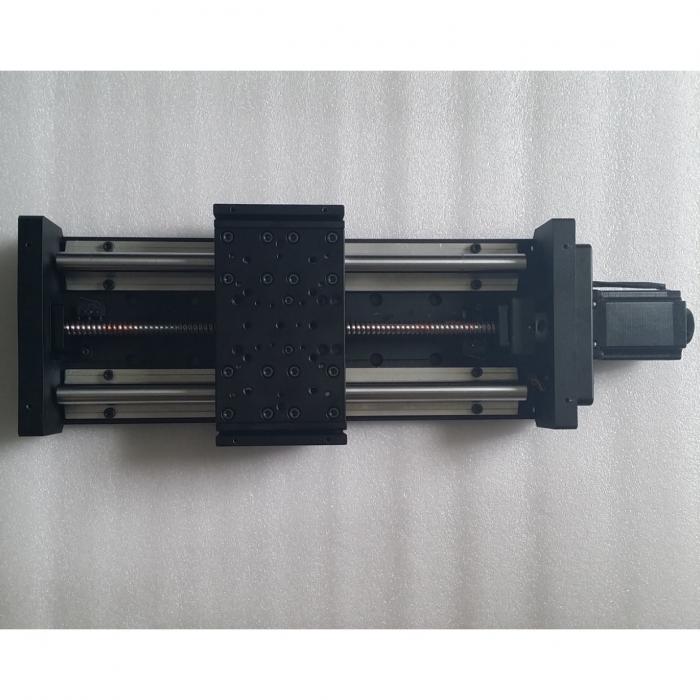

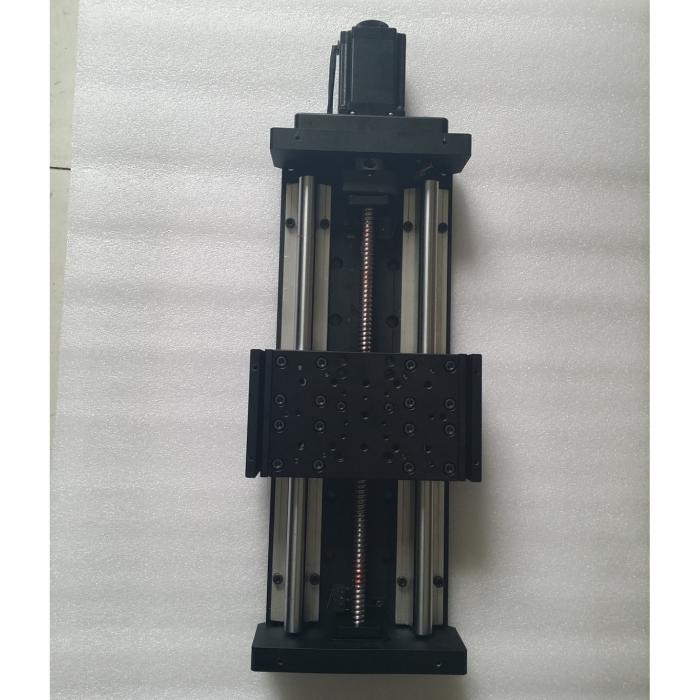

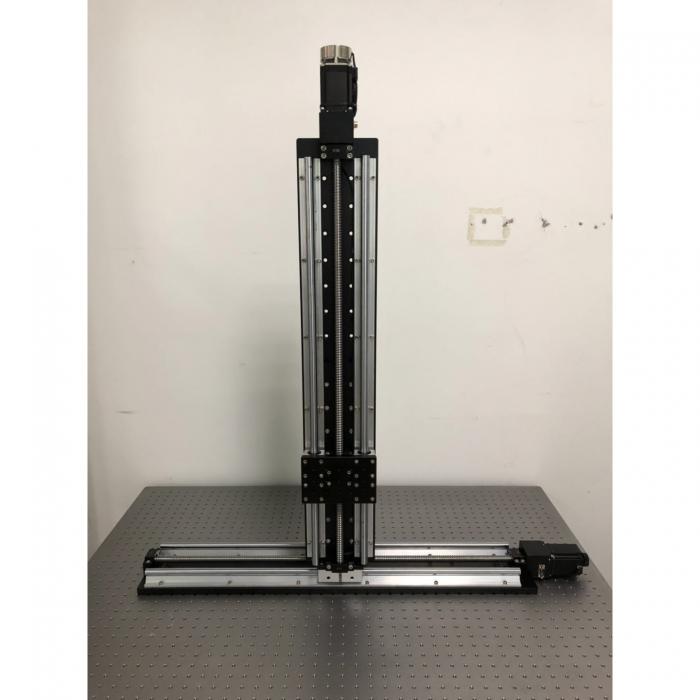

Motorized Linear Translation Stages (Round guide type)
Features
1. Regular linear translation stage type set with small 1.8°2-phase stepper motor
2. High precise ball screw provides linear slide high-performance and high-accuracy
3. Round guide for linear slide long travel but low-loading use
4. Special design for couple with other linear slide easily
5. The basic linear translation stage type can set with grating scales, servo motor
6. RS232 interface for connecting linear slide motion controller easily

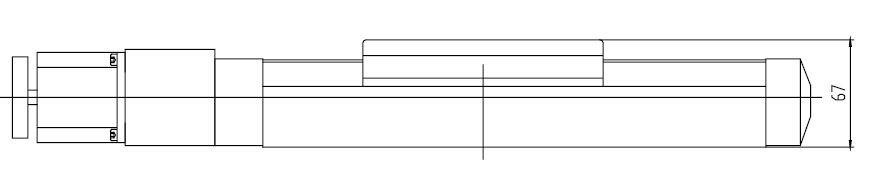

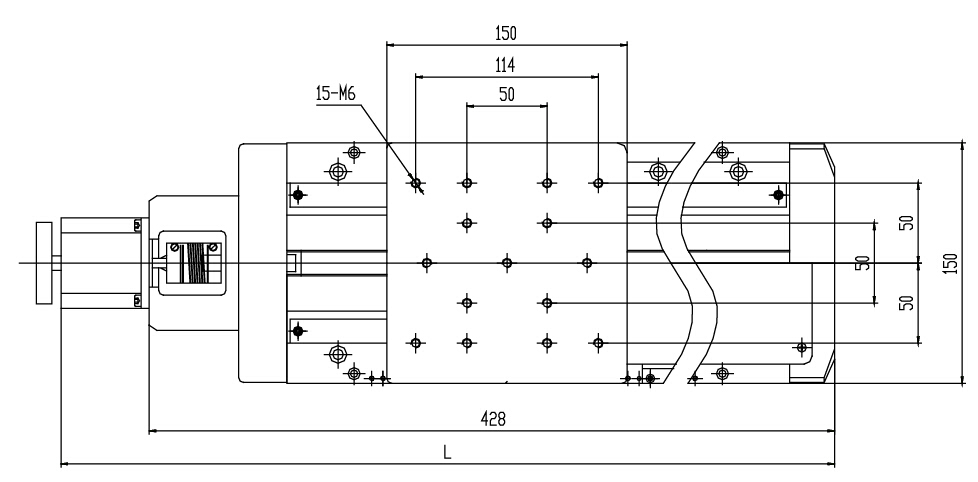

Model Number | J04DP100 | J04DP150 | J04DP200 | J04DP300 | J04DP400 | J04DP500 | J04DP600 | ||||||
Travel Range | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | 600mm | ||||||
Bearing | High Precise Ball Screw with 5mm leading | ||||||||||||
Travel Guide | Round rail | ||||||||||||
Stepper Motor | 1.8° 2-phase STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy Black-Anodized | ||||||||||||
Max Load Capacity | 30kg horizontal/ 15kg vertical | ||||||||||||
Weight | 4.0kg | 5.5kg | 5.9kg | 6.3kg | 7.0kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm /pulse, non-ms driver 1μm /pulse, 20ms driver | 20μm /pulse, non-ms driver 1.25μm /pulse, 20ms driver | |||||||||||
Max Speed | 40mm/sec | 50mm/sec | |||||||||||
Repeatability | 8μm | ||||||||||||
Absolute Accuracy | 10μm | ||||||||||||
Straightness | 15μm | 30μm | 60μm | ||||||||||
Degree of Parallelization | 20μm | 25μm | 30μm | ||||||||||
Pitching | 80” | 80” | 80” | ||||||||||
Yawing | 60” | 60” | 60” | ||||||||||
Backlash | 8um | ||||||||||||
Optional Accessories | Brake Function, Grating Scales, Servo Motor and Dust Cover | ||||||||||||
