Name:Motorized XY Micro Positioning Table: J03DP-XY1010

Product Description

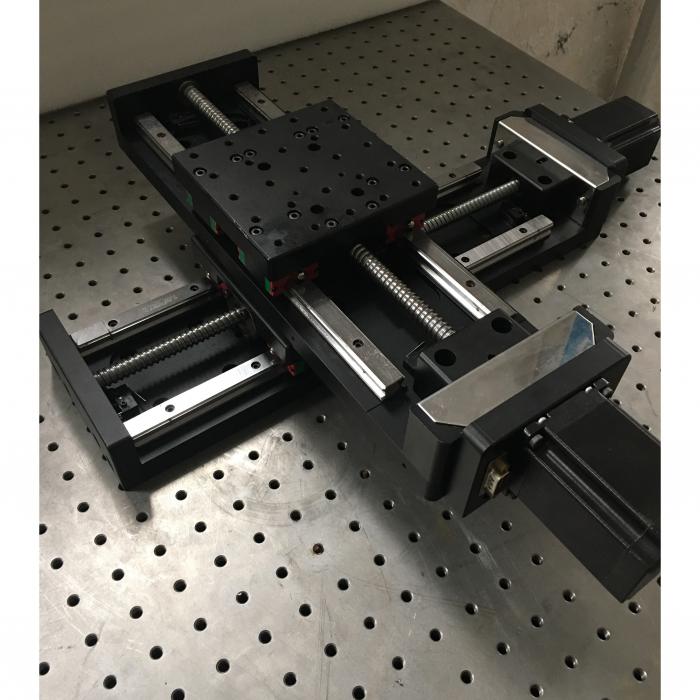

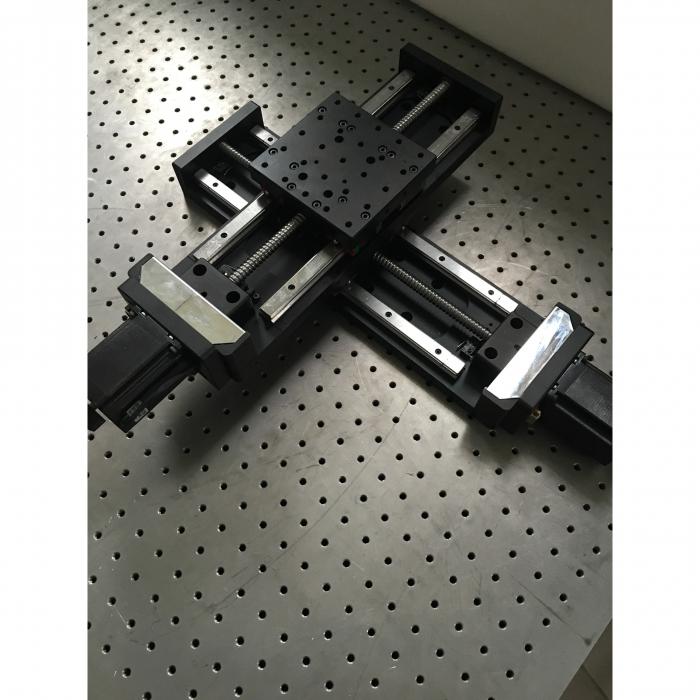

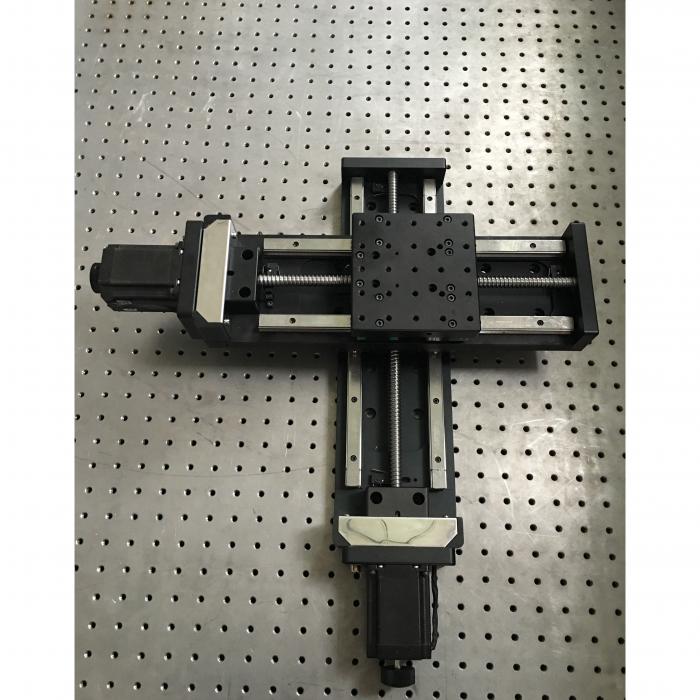

Motorized XY Micro Positioning Table



Function:

1.     The XY Micro Positioning Table move in X, Y directions.

2.     The travel range of picture XY is 100*100mm. The travel range could be 100 to 700mm.

3.     Both of linear translation stages of this XY Micro Positioning Table have two limited switches to protection.

4.     2-axis synchronous controller J200MC supplies 2 axes move at the same time, to realize very accuracy positioning by laptop or desktop.



This system could be redesigned according to your different travel range and loading requirements.

More information please email us!



Model Number

J03DP-XY1010

Travel Range

100*100mm

Bearing

Ball Screw with 5mm leading

Travel Guide

Square Rail

Stepper Motor

1.8 °, 2-phase, 57 stepper motor with RS232 interface

Material-Finish

Aluminum Alloy Black-Anodized

Max Load Capacity

20kg

Resolution

20μm/pulse, non subdivision

1μm/pulse, 20 subdivision

Max Speed

40mm/sec

Repeatability

5μm

Absolute Accuracy

8μm

Straightness

30μm

Degree of Parallelization

20μm

Pitching

80“

Yawing

60”

Backlash

8μm

Optional Accessories

Braking Protection Motor
