Name:Heavy Loading Motorized XYZ Rotating Table: J3WDX200-200

Product Description

Heavy Loading Motorized XYZ Rotating Table



The xyz rotating table is used to position specimens and sensors in 3D space for simulation and calibration.

This custom motion system is built with standard rotation stages and provides a high-performance and high-accuracy positioning by the motors.

If you require the 360°of continuous rotation, the motion system must be designed by slip ring, like the picture showed below.

It will achieve the 360°continuous rotation for all three axes.



Model Number

J3WDX200-200

Angle Range

360°for X, Y, Z axis

Worm Gear Ratio

180:1

Driver

Worm Gear

Guide

Bearing

Stepper Motor(1.8°)

57

Material

Aluminum

Surface Treatment

Black-anodized

Loading

25kg

Weight

36kg

Resolution

0.01°, Non-MS driver

0.000625°, 16MS driver

Speed

10 to 15°/sec

Repeatability

0.01°

Run-out of top plate

15μm

Backlash

0.005°

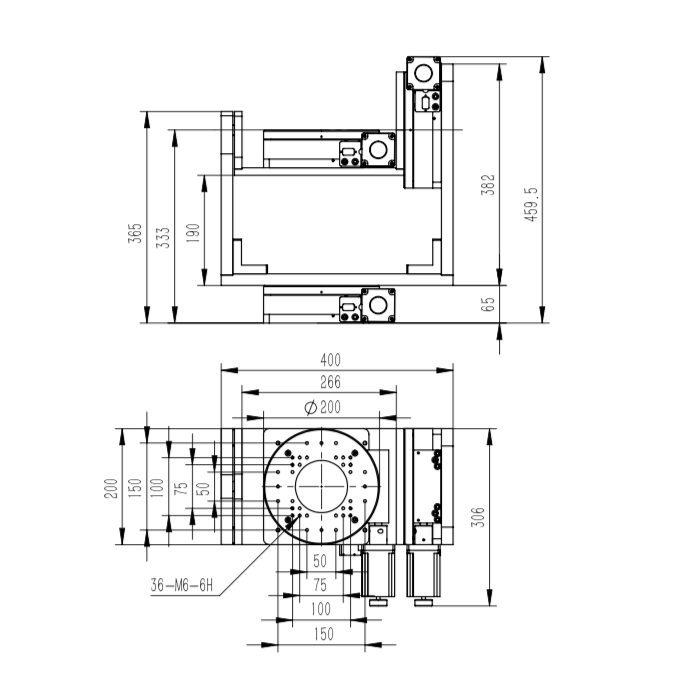

motorzied xyz rotary stage 2020.png
