| Name: | Manual Rotary Table: J03SX60-125 |
|---|---|
Product Description

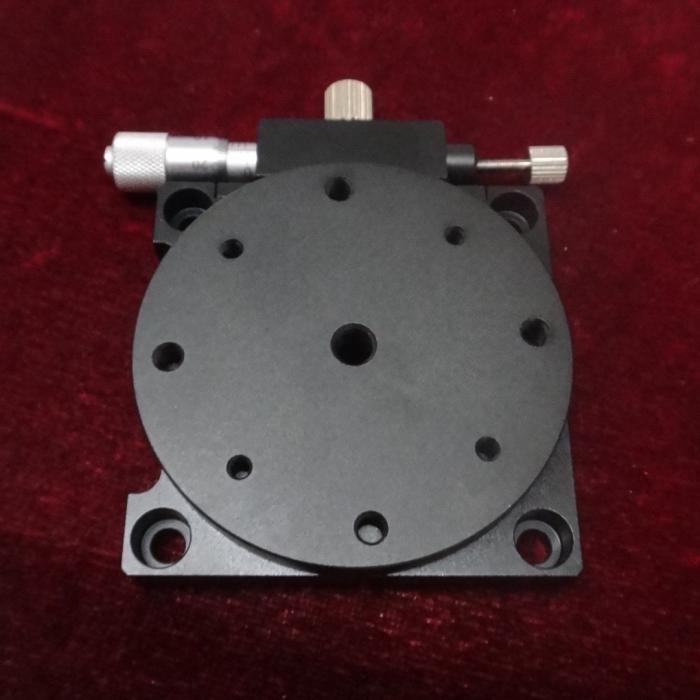

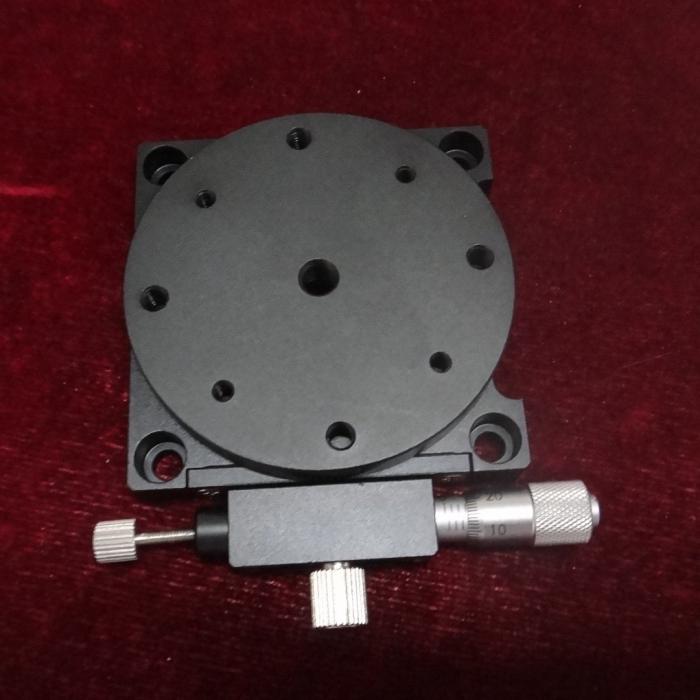

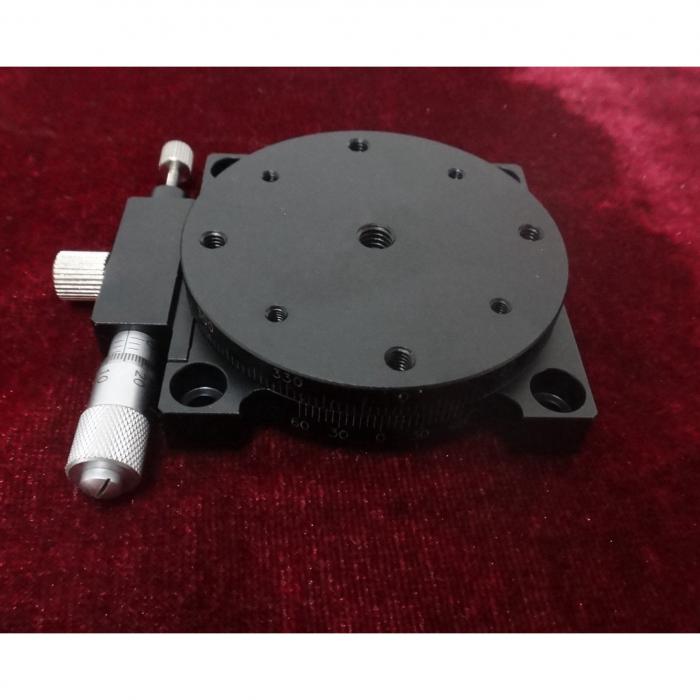

Manual Rotary Table
Production Feature:
*The rotary table top can rotate in 360°
*The driver set comes with lock
*The rotary table with regular holes both on top and bottom for connecting the other stages

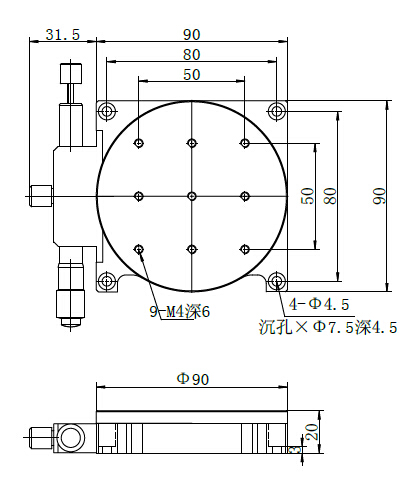

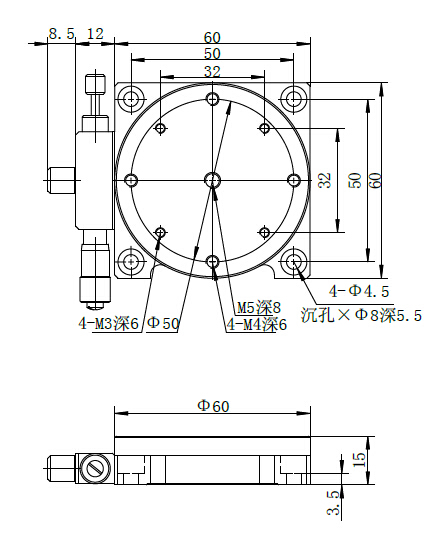

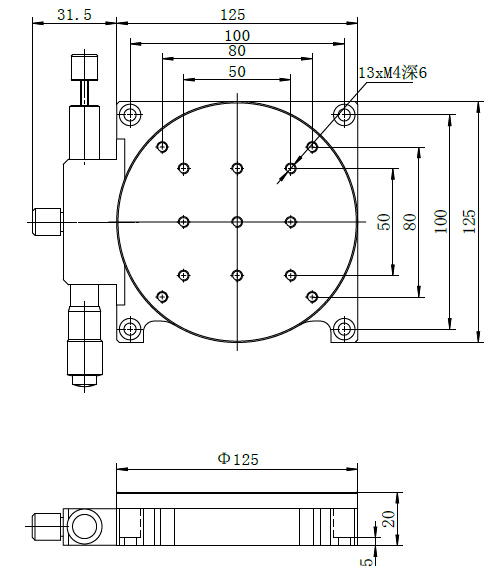

Model Number | J03SX60 | J03SX90 | J03SX125 |
Diameter of Table | 60mm | 90mm | 125mm |
Drive | Micrometer head | ||
Reading Mode | Vernier Reading | ||
Min Score | 10’ | 5’ | 5’ |
Adjustment range | Rough 360° fine +/-5° | ||
Loading | 3kg | 3kg | 15kg |
Weight | 0.2kg | 0.5kg | 0.96kg |
