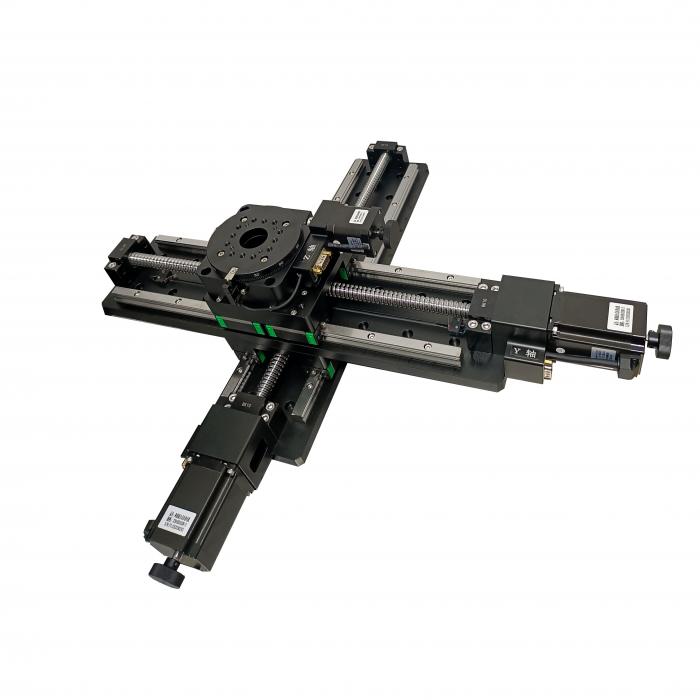

| Name: | Motorized XY Table with Rotary Axis |
|---|---|
Product Description
Name | Motorized XY Table with R Axis | |
Model Number | DZXYR331 | |
Weight | 16kg | |

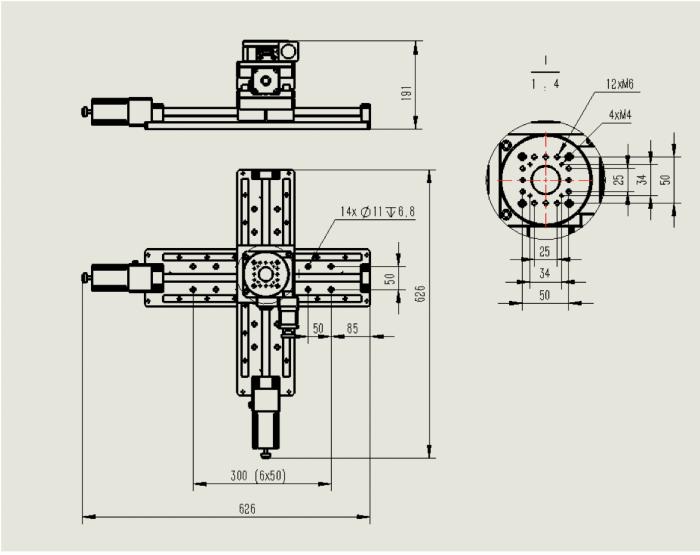

Dimension | 626X626X191mm | |
Material | Aluminum | |
Surface Treatment | Anodized-Black | |
Loading | 4kg | |
XY Linear Axes | Motor | 2-Phase, 1.8°, 57 Stepper Motor |
Motor Interface | RS232 | |
Speed | 20mm/s | |
Accuracy | ±0.05° | |
Travel Range | 300x300mm | |
Rotary Axis | Motor | 2-Phase, 1.8°, 42 Stepper Motor |
Motor Interface | RS232 | |
Speed | 10-20°/s | |
Accuracy | ±0.05° | |
Travel Range | >360°（When loading without cables） | |
Controller(optional) | Type | Stepper Motor |
Dimension | 390x155x344mm | |
weight | 10kg | |
Axes Number | 3 | |
Cable Length | 3M | |
Controller Interface | RJ45 or 232 | |
