| Name: | Most Popular Motorized Linear Translation Stages: J03DP(50-500) |
|---|---|
Product Description

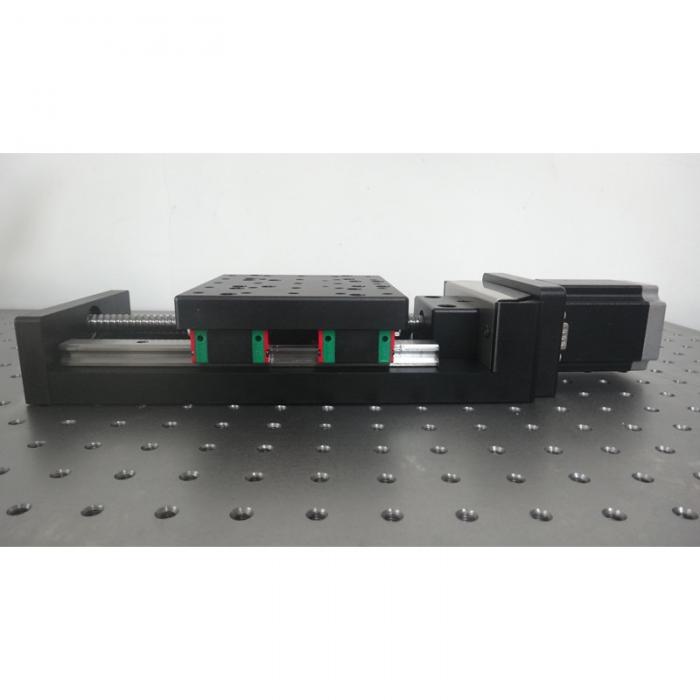

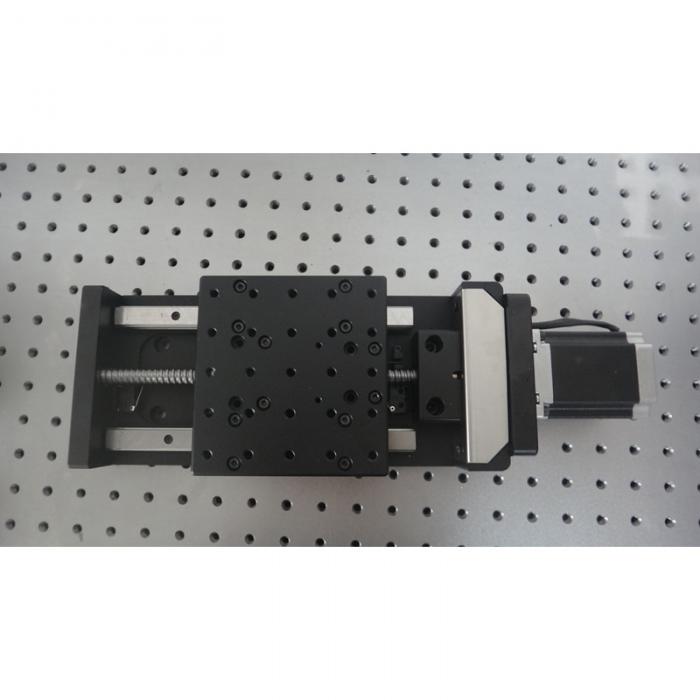

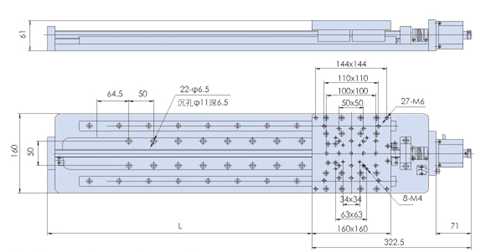

Motorized Linear Translation Stages (Most Popular Type)
Features
1. High precise ball screw provides high-performance and high-accuracy to the linear translation stage
2. Regular linear translation stage type set with small 1.8°2-phase stepper motor
3. Square rail and sliding block supply high-loading, special in horizontal use

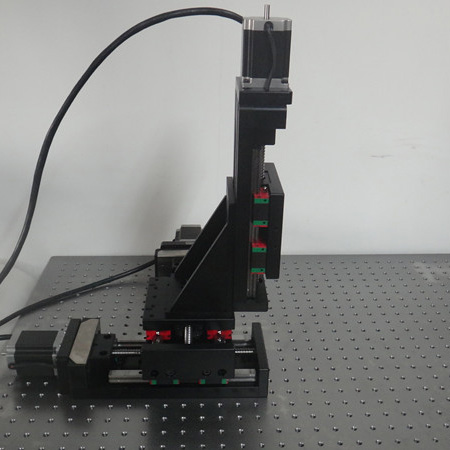

4. Special design for couple with other stage easily
5. The basic type can set with grating scales, servo motor
6. RS232 interface for connecting motion controller easily
Model Number | J03DP50 | J03DP100 | J03DP150 | J03DP200 | J03DP300 | J03DP400 | J03DP500 | ||||||
Travel Range | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | ||||||
Bearing | High Precise Ball Screw with 5mm leading | ||||||||||||
Travel Guide | Square rail and sliding blocks | ||||||||||||
Stepper Motor | 1.8° 2-phase STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy Black-Anodized | ||||||||||||
Max Load Capacity | 30kg horizontal/ 15kg vertical | 40kg horizontal/ 15kg vertical | 50kg horizontal/ 15kg vertical | ||||||||||
Weight | 4.0kg | 5.5kg | 5.9kg | 6.3kg | 7.0kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm/pulse, non-ms driver 1μm /pulse, 20ms driver | 20μm /pulse, non-ms driver 1.25μm /pulse, 20ms driver | |||||||||||
Max Speed | 40mm/sec | 50mm/sec | |||||||||||
Repeatability | 5μm | ||||||||||||
Absolute Accuracy | 8μm | ||||||||||||
Straightness | 5μm | 6μm | 8μm | ||||||||||
Degree of Parallelization | 10μm | 15μm | 20μm | ||||||||||
Pitching | 25” | 50” | 60” | ||||||||||
Yawing | 20” | 25” | 30” | ||||||||||
Backlash | 5μm | ||||||||||||
Optional Accessories | Brake Function, Grating Scales, Servo Motor and Dust Cover | ||||||||||||
