Name:Motorized XYZ Table + Manual XY Rotating Micro Position Table

Product Description

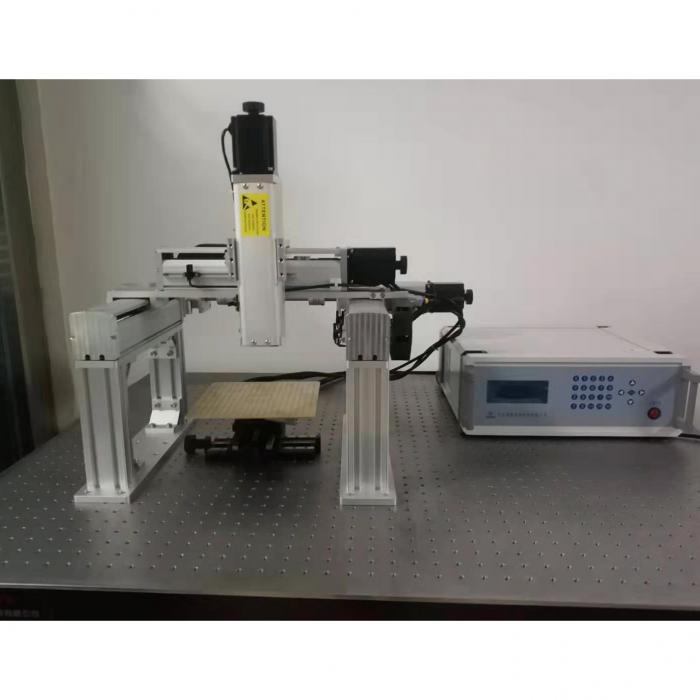

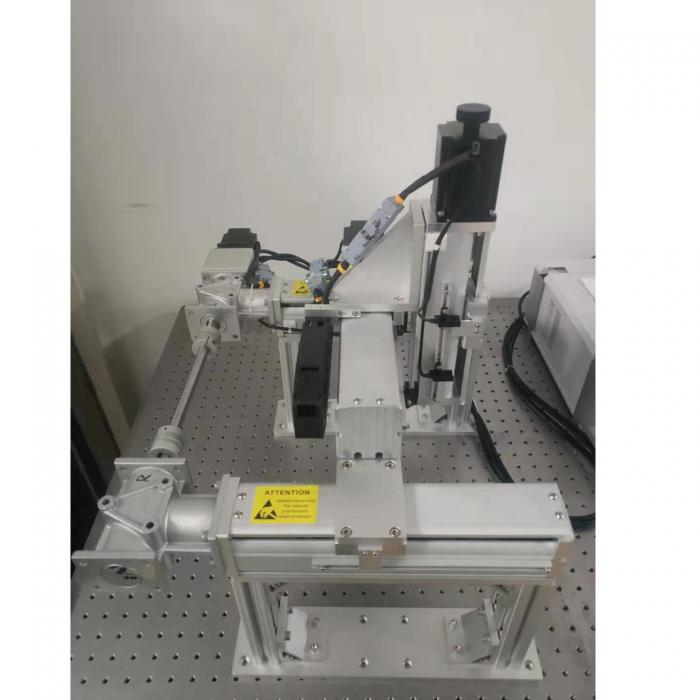

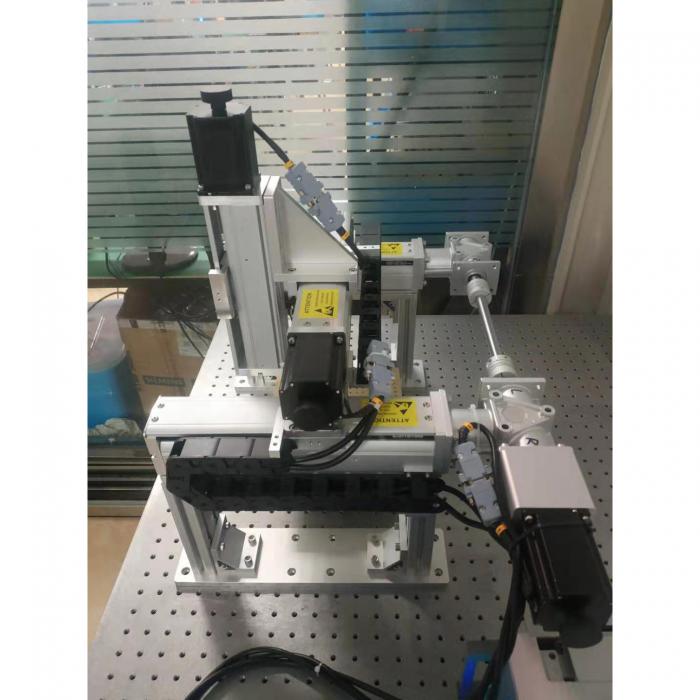

Motorized XYZ+ Manual XY Rotating Table



Function:

1.   The motorized xyz part moves to X, Y and Z axes.

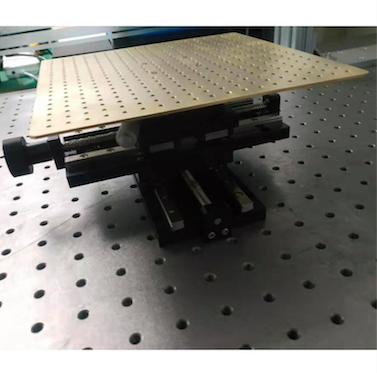

2.   The manual part moves to X, Y and R axes.



This system could be redesigned according to your different travel range and loading requirements.

More information please email us!



Model Number

J60S-XYZ101050

Travel Range

100*100*50mm

Bearing

High Precise Ball Screw with 5mm leading

Travel Guide

Sqaure Rail

Stepper Motor

1.8 °, 2-phase, 42 stepper motor with RS232 interface

Material-Finish

Aluminum Alloy Anodized

Max Load Capacity

3kg without braking protection motor/ 15kg with braking protection motor

Resolution

20μm/pulse, non subdivision

1μm/pulse, 20 subdivision

Max Speed

100mm/sec

Repeatability

±0.01mm

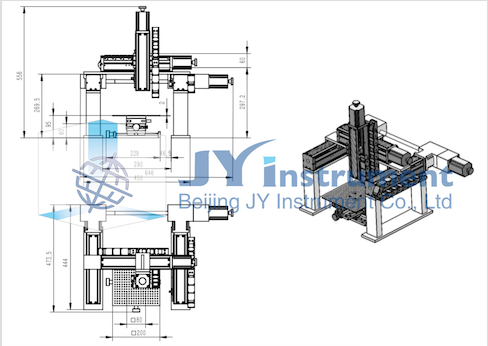

 屏幕快照 2019-11-05 下午7.58.19.png

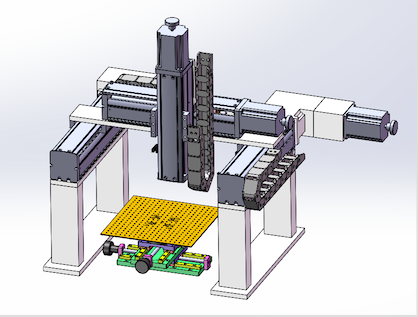

屏幕快照 2019-11-05 下午7.58.41.png

屏幕快照 2019-11-05 下午7.58.32.png
