|Name:||Motorized XYZ Gantry Linear Translation Table: J60S-XYZ101050|

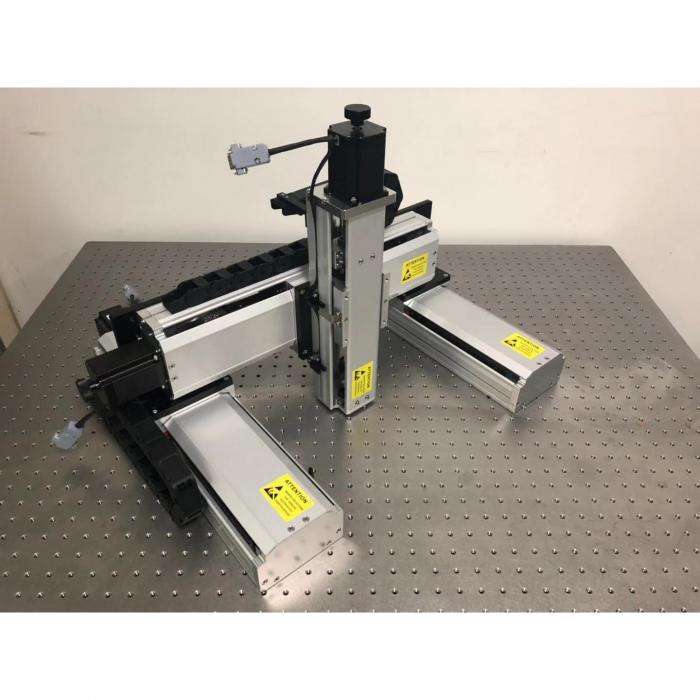

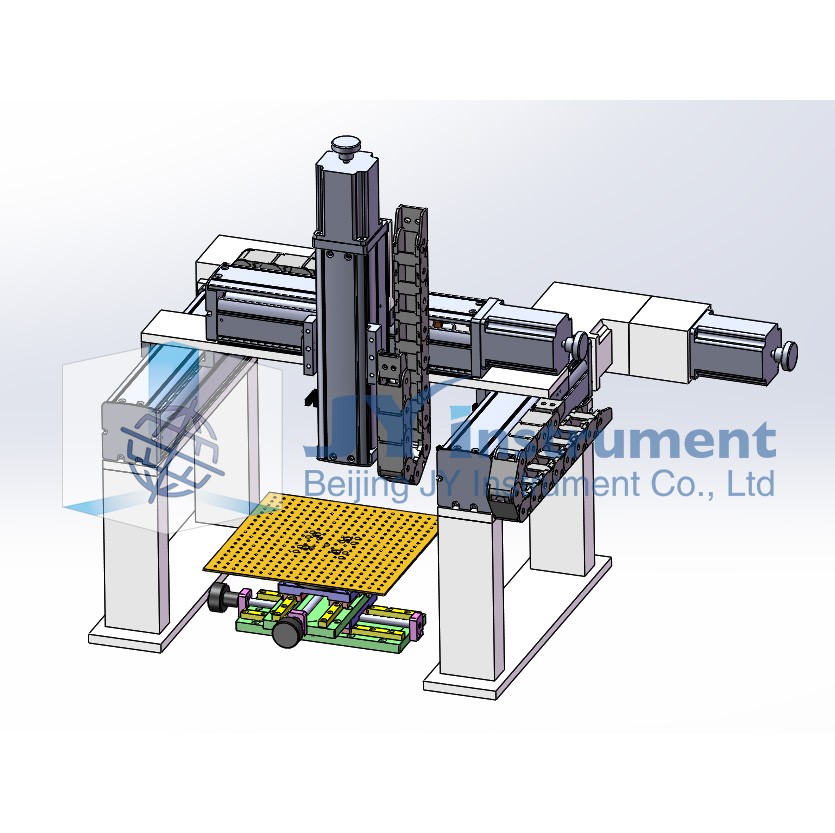

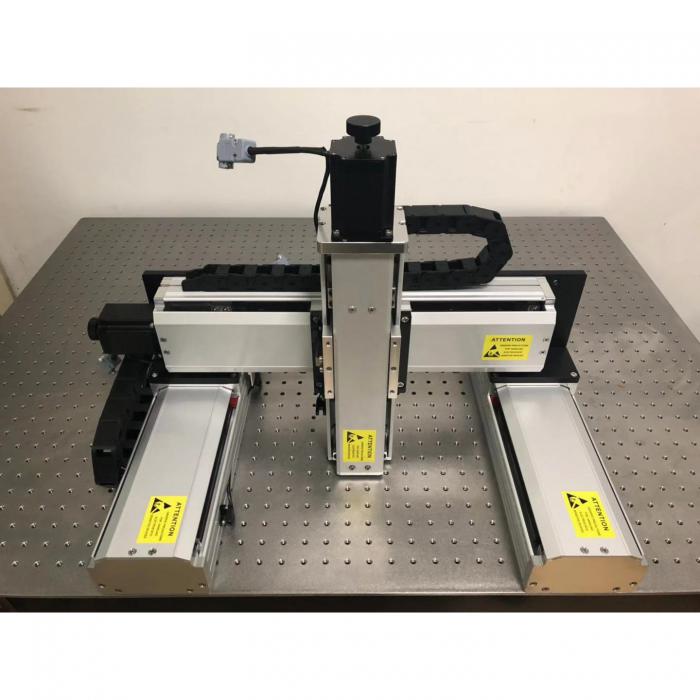

Motorized XYZ Gantry Linear Translation Table
1. The xyz table moves to X, Y and Z axes.

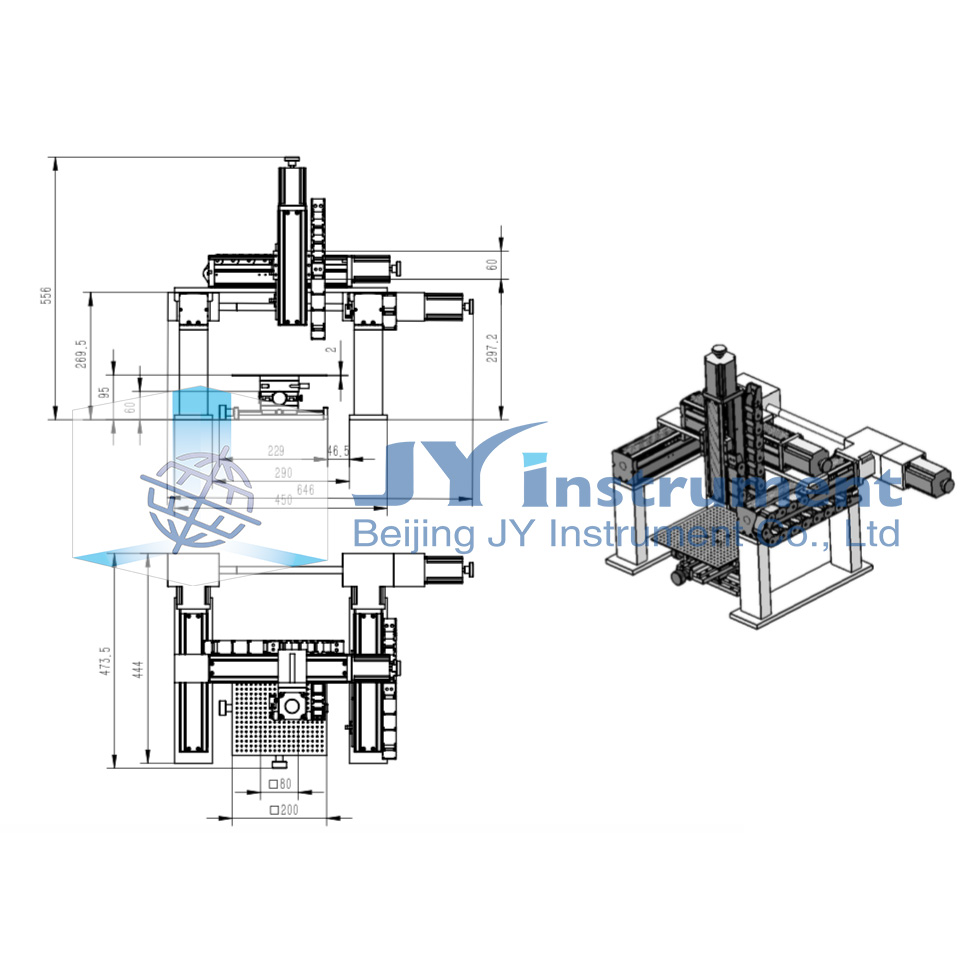

2. The travel range of picture xyz table is 100x100x50mm. The travel range could be 100 to 700mm.
3. All of axes has limited switches on the both sides to protect the xyz table.
The system could be redesigned according to your requirements.
More information please email us!
High Precise Ball Screw with 5mm leading
1.8 °, 2-phase, 42 stepper motor with RS232 interface
Aluminum Alloy Anodized
Max Load Capacity
3kg without braking protection motor/ 15kg with braking protection motor
20μm/pulse, non subdivision
1μm/pulse, 20 subdivision
