Product Description

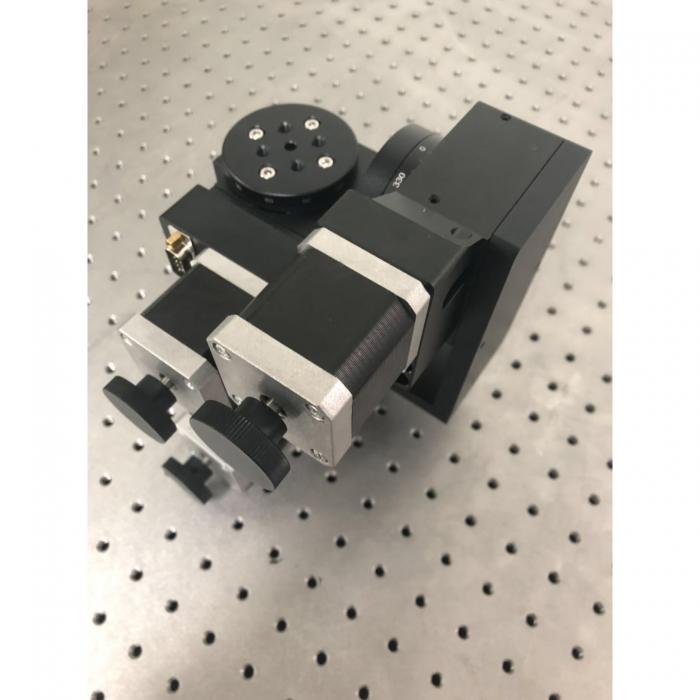

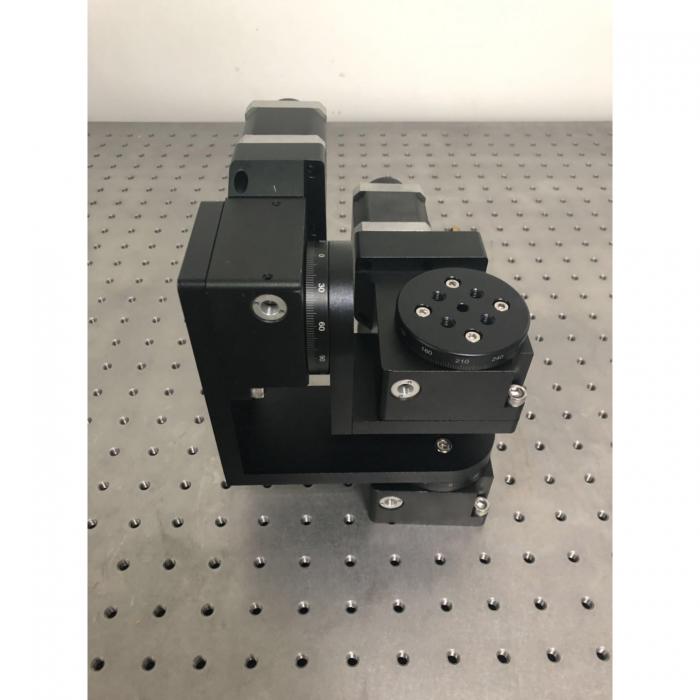

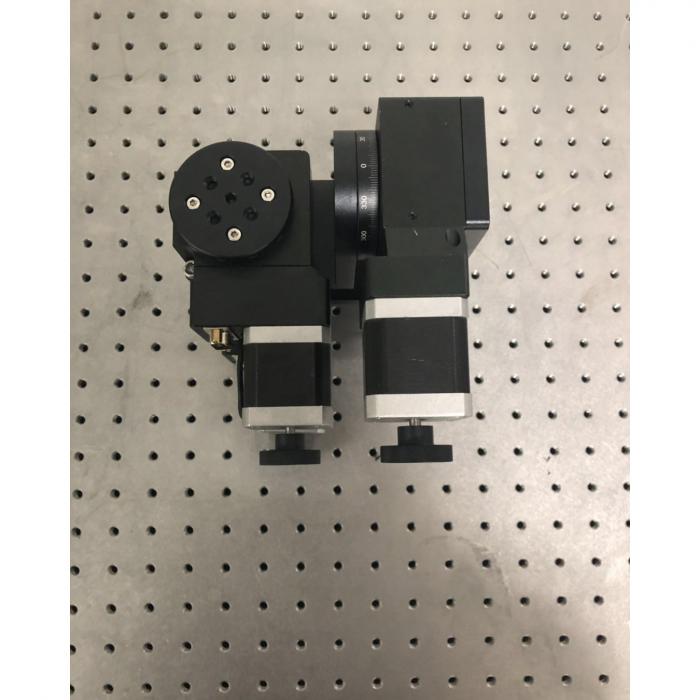

Mini Motorized XYZ Rotating Table
The xyz rotating table is used to position specimens and sensors in 3D space for simulation and calibration.
This custom motion system is built with standard rotation stages and provides a high-performance and high-accuracy positioning by the motors.

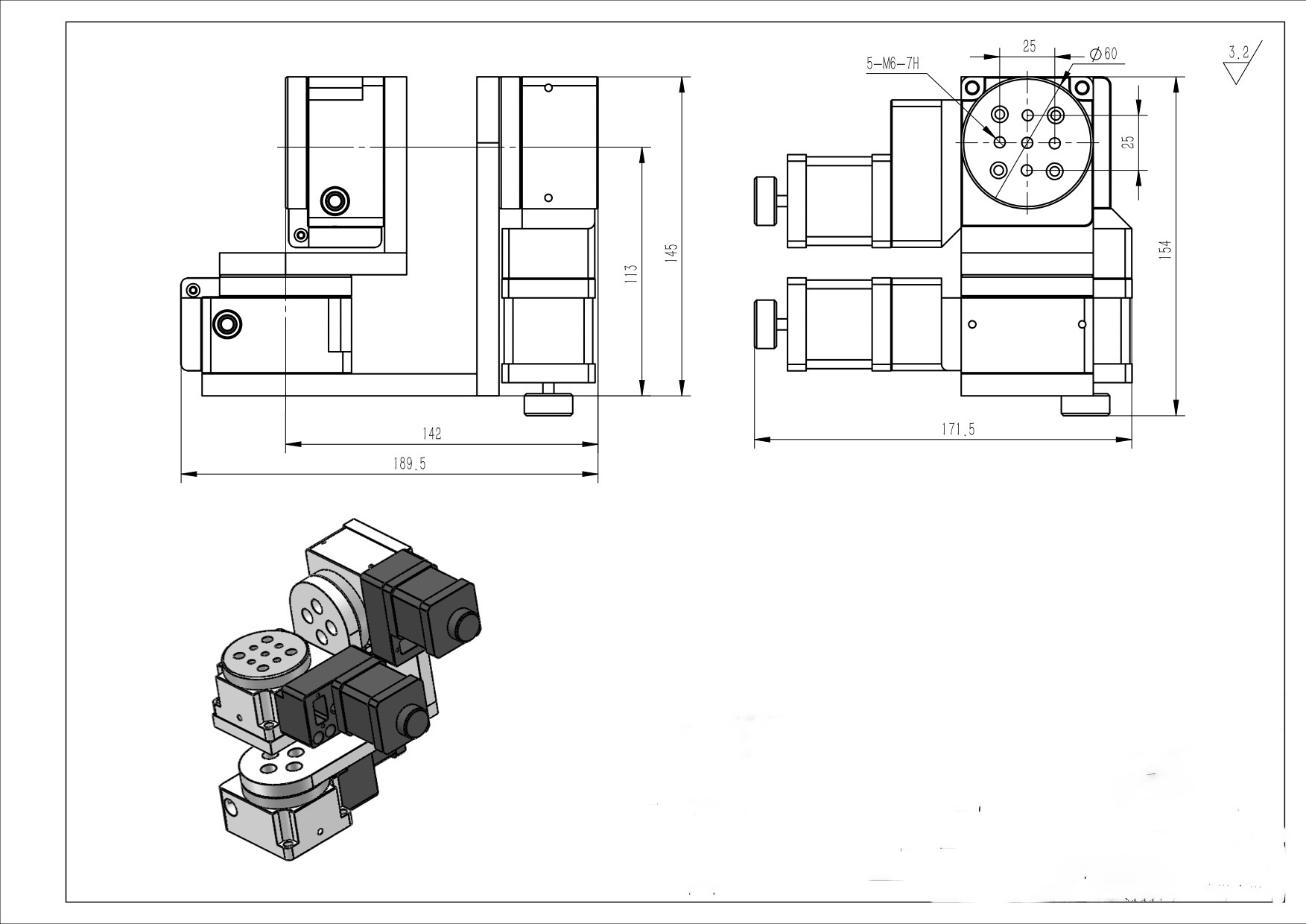

If you require the 360°of continuous rotation, the motion system must be designed by slip ring, like the picture showed below.
It will achieve the 360°continuous rotation for all three axes.
Model Number | J3WDX60-60 |
Angle Range | 360°for X, Y, Z axis |
Worm Gear Ratio | 90:1 |
Driver | Worm Gear |
Guide | Bearing |
Stepper Motor(1.8°) | 42 |
Material | Aluminum |
Surface Treatment | Black-anodized |
Loading | 5kg |
Weight | 6kg |
Resolution | 0.01°, Non-MS driver 0.00125°, 16MS driver |
Speed | 50°/sec |
Repeatability | 0.005° |
Run-out of top plate | 15μm |
Backlash | 0.005° |
