  • Customized DC Motor Rotary Stage with 24V DC Motor and Speed Regulator
Name:Customized DC Motor Rotary Stage with 24V DC Motor and Speed Regulator

Product Description




Item Number

DZJ02DX100DC

Angle Range

360°

Dimension

diameter 100mm

Clear Aperture

30mm

Worm Gear Ratio

180:1

Drive Mechanism

Worm Gear

Guide

Bearing

Working Current

1.7A

Stepper Motor(1.8°)

24 DC Motor

Material

Aluminum

Surface Treatment

Black- Anodized

Loading

5kg

Weight

1.7kg

Resolution

0.01° non-driver

0.0005° 16 MS driver

Speed

25°/sec

Repeatability

0.005°

Run Out of Top

15μm

Backlash

0.005°

Eccentricity

0.005°

Degree of Parallelization

80μm

Home Switch

No

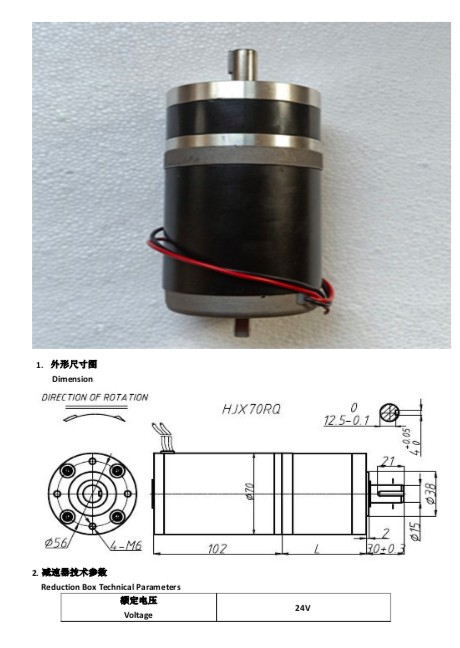

屏幕快照 2019-12-03 下午3.51.06.png
