Name: | Motorized XYZ Micro Positioning Table: J03DP-XYZ1010 |
---|---|
Product Description

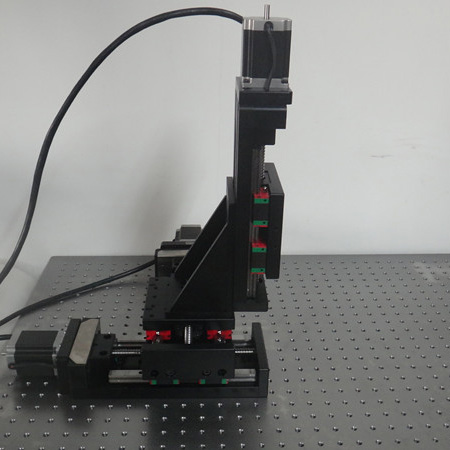

Motorized XYZ Micro Positioning Table
Function:
1. The XYZ micro positioning table move in X, Y, Z directions.
2. The travel range of picture XYZ table is 100*100*100mm. The travel range could be 100 to 700mm.
3. All of linear translation stages of this XYZ micro positioning system have two limited switches to protection.
4. 3-axis synchronous controller J200MC supplies 3 axes move at the same time, to realize very accuracy positioning by laptop or desktop.
This system could be redesigned according to your different travel range and loading requirements.
More information please email us!
Model Number | J03DP-XYZ1010 |
Travel Range | 100*100*100mm |
Bearing | Ball Screw with 5mm leading |
Travel Guide | Square Rail |
Stepper Motor | 1.8 °, 2-phase, 57 stepper motor with RS232 interface |
Material-Finish | Aluminum Alloy Black-Anodized |
Max Load Capacity | 5kg without braking protection motor/ 20kg with braking protection motor |
Resolution | 20μm/pulse, non subdivision 1μm/pulse, 20 subdivision |
Max Speed | 40mm/sec |
Repeatability | 5μm |
Absolute Accuracy | 8μm |
Straightness | 30μm |
Degree of Parallelization | 20μm |
Pitching | 80“ |
Yawing | 60” |
Backlash | 8μm |
Optional Accessories | Braking Protection Motor |
