| Name: | Motorized XY Table: J02DP30XY |
|---|---|
Product Description

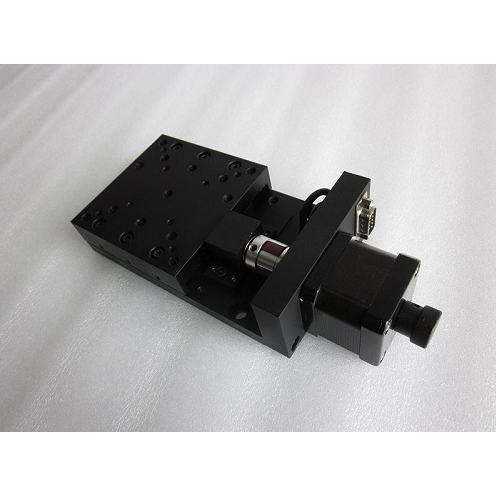

Motorized XY Table
Function:
1. The XY Table moves to X and Y axes and connected by screw by mounting holes.
2. The travel range of picture xy table is 30*30mm. The travel range could be 15, 30, 50, 75MM.
3. Both of axes has limited switches on the both sides to protect the XY table.
Model Number | J02DP30XY |
Travel Range | 30*30MM |
Bearing | 1mm leading screw |
Stepper Motor | 1.8 °, 2-phase, 42 stepper motor with RS232 interface |
Material-Finish | Aluminum Alloy Black-Anodized |
Max Load Capacity | 20kg |
Resolution | 2.5μm/pulse, non subdivision 1.25μm/pulse, 20 subdivision |
Max Speed | 10mm/sec |
Repeatability | 10μm |
Absolute Accuracy | 8μm |
