Product Description

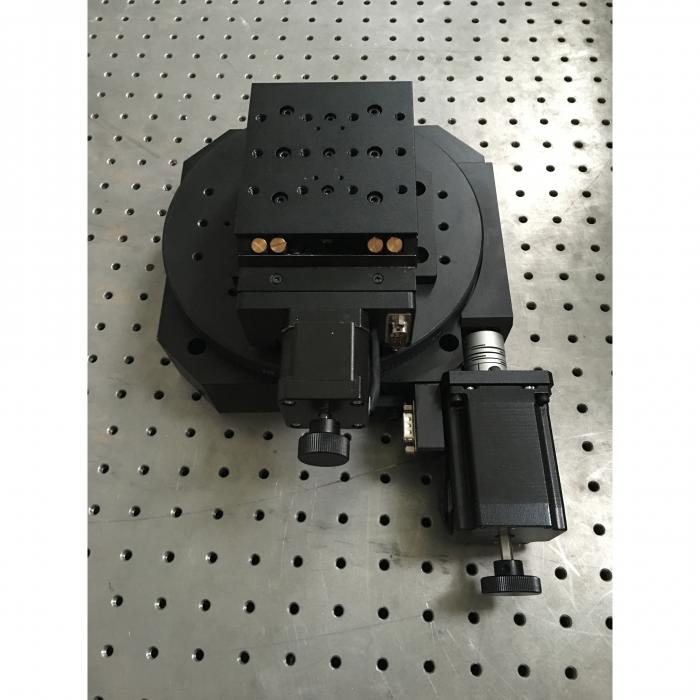

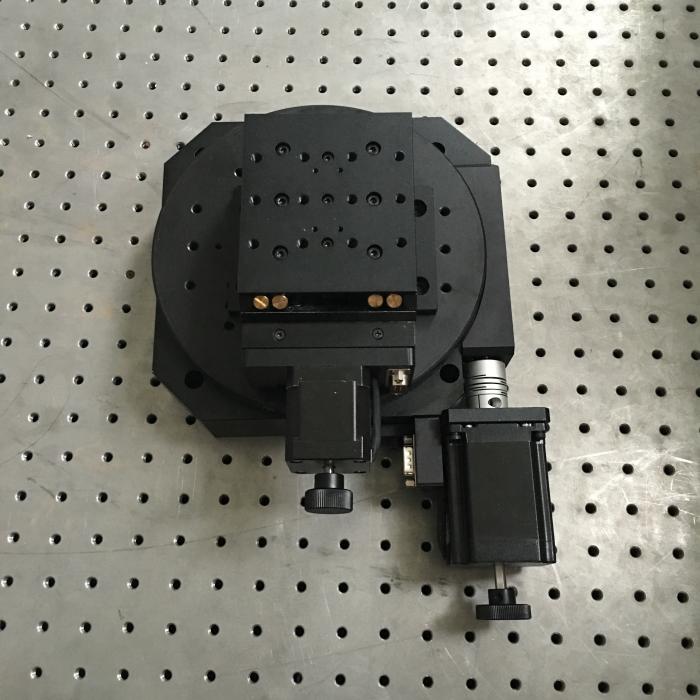

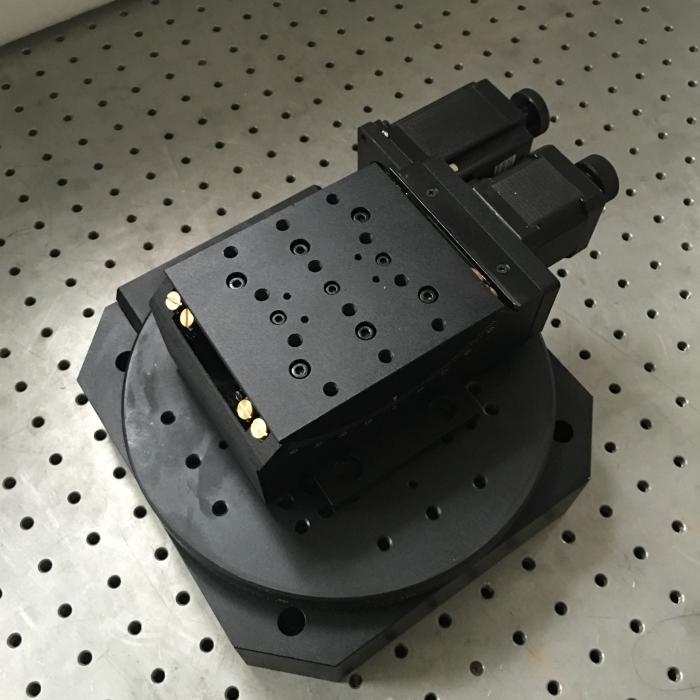

Motorized XY Tilting Rotary Table

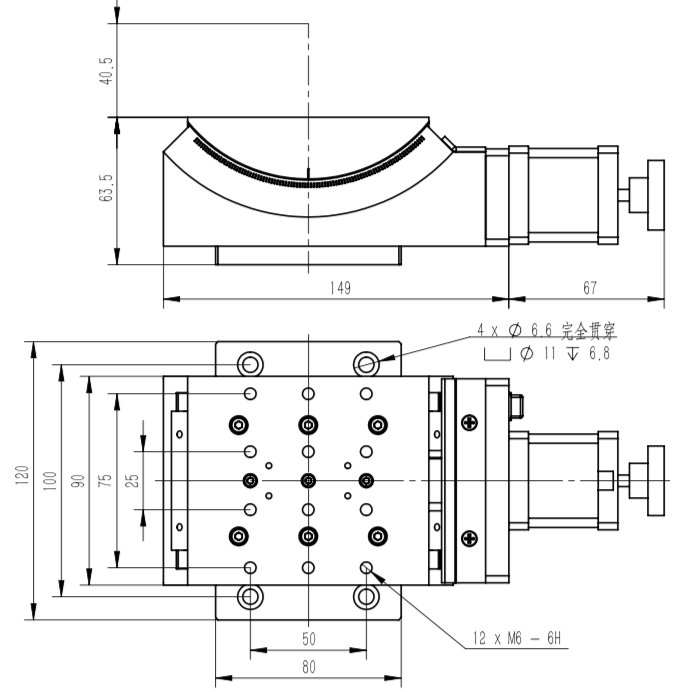

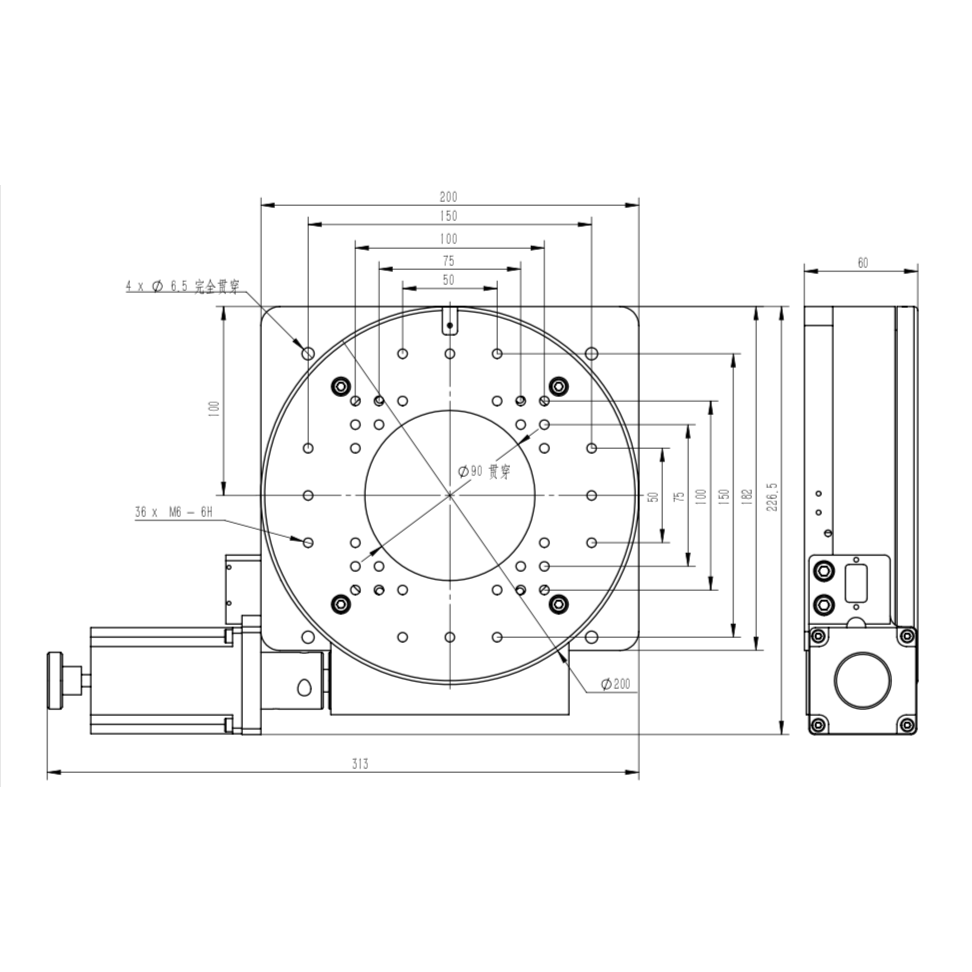

1. The xy table built by one motorized rotary stage J03DX200 and one motorized goniometer stage J03DJ40.
2. The xy table could supply 360° rotary and ±40° angle range.
3. The controller J200MC control the two axes move synchronous by laptop or desktop.
This system could be redesigned according to your different travel range and loading requirements.
More information please email us!
Model Number | J03DX200-J03DJ40 |
Travel Range | 360°/ ±40° |
Dimension | 200mm/ 80*80mm |
Worm Gear Ratio | 180:1/ 288:1 |
Guide | Bearing |
Material | Aluminum |
Weight | 12kg |
Resolution | 0.0025° no subdivision 0.00125° 20 subdivision |
Speed | 20°/sec |
Repeatability | ±3” |
Loading | 10kg |
Accuracy | ±8” |
Limited Switch | Yes |
