| Name: | Motorized XYZ Rotating Micro Positioning Table with Base Plate：J03DP-XYZR1010 |
|---|---|
Product Description

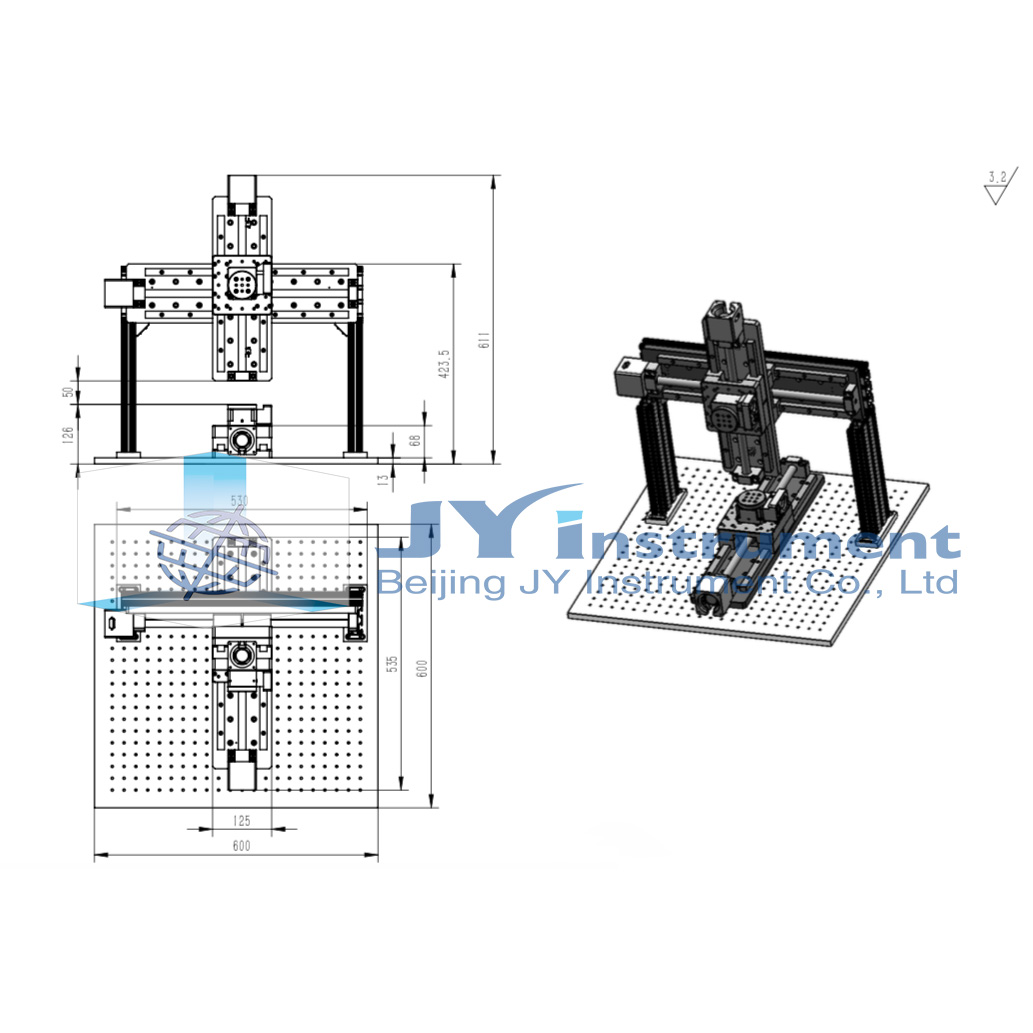

Motorized XYZ Rotating Micro Positioning Table with Base Plate
Function:
1. The XYZ rotating micro positioning table move in X, Y, Z, R directions.
2. The travel range of picture XYZ is 100*100*100mm. The travel range could be 100 to 700mm.
R axis use one 60mm diameter motorized rotary stage J01DX60.
3. All of linear translation stages of this XYZ rotating micro positioning table have two limited switches to protection.
4. 4-axis synchronous controller J200MC supplies 4 axes move at the same time, to realize very accuracy positioning by laptop or desktop.
5. The whole system is built on optical plate which with 25*25mm M6 mounting hole and could be moved to other workbench conveniently.
This system could be redesigned according to your different travel range and loading requirements.
More information please email us!
Model Number | J03DP-XYZR1010 |
Travel Range | 100*100*100mm Rotary axis> 360° |
Bearing | Ball Screw with 5mm leading |
Travel Guide | Square Rail |
Stepper Motor | 1.8 °, 2-phase, 57 stepper motor or 42 motor with RS232 interface |
Material-Finish | Aluminum Alloy Black-Anodized |
Max Load Capacity | 3kg without braking protection motor/ 15kg with braking protection motor |
Resolution | 20μm/pulse, non subdivision 1μm/pulse, 20 subdivision |
Max Speed | 40mm/sec |
Repeatability | 5μm |
Absolute Accuracy | 8μm |
Straightness | 30μm |
Degree of Parallelization | 20μm |
Pitching | 80“ |
Yawing | 60” |
Backlash | 8μm |
Optional Accessories | Braking Protection Motor |
