Product Description

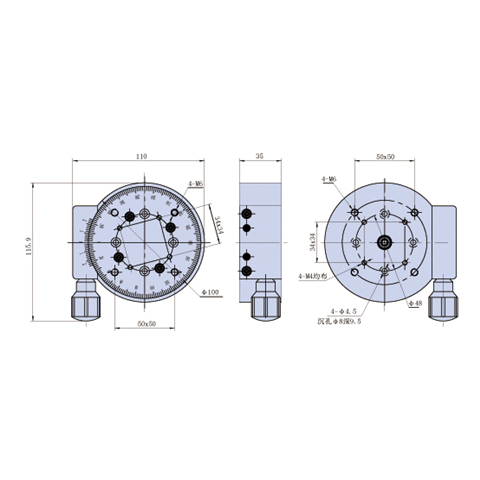

Manual rotary table, diameter 100mm
Production Feature:
*The rotary table top can rotate in 360°
*Worm Gear design for high loading and accuracy
*The rotary table with regular holes both on top and bottom for connecting the other stages
Model Number | J02SX100 |
Diameter of Table | 100mm |
Drive | Worm Gear |
Adjustment Range | 360° |
2° | |
Min Reading | 12’ |
Min Adjustment | 36” |
Loading | 15kg |
Run-out of Top Plate | 30μm |
Eccentricity | 15μm |
Degree of Parallelization | 30μm |
Weight | 0.5kg |
Material | Aluminum |
Surface | Black-Anodized |
