Name: | Manual Rotary Table: J01SX82 |
---|---|
Product Description
Manual Rotary Table, diameter 82mm
Production Feature:
*The rotary table top can rotate in 360°
*The rotary table can rotate in +/-10°for fine adjustment. Micrometer head drive and spring reverse motion for high resolution and without backlash.

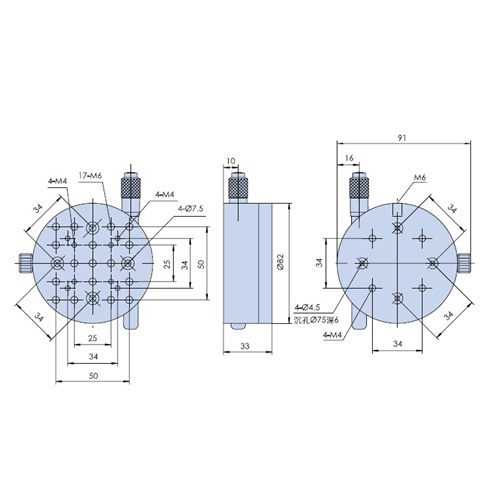

*The rotary table with regular holes both on top and bottom for connecting the other stages
Model Number | J01SX82 |
Diameter of Table | 82mm |
Drive | Micrometer Head |
Adjustment Range | Rough Adjust 360°, Fine Adjust +/-10° |
Min Score | 1° |
Min Reading | 2’ |
Min Adjustment | 15” |
Loading | 5kg |
Run-out of Top Plate | 60μm |
Eccentricity | 30μm |
Degree of Parallelization | 60μm |
Weight | 0.5kg |
Material | Aluminum |
Surface | Black-Anodized |
