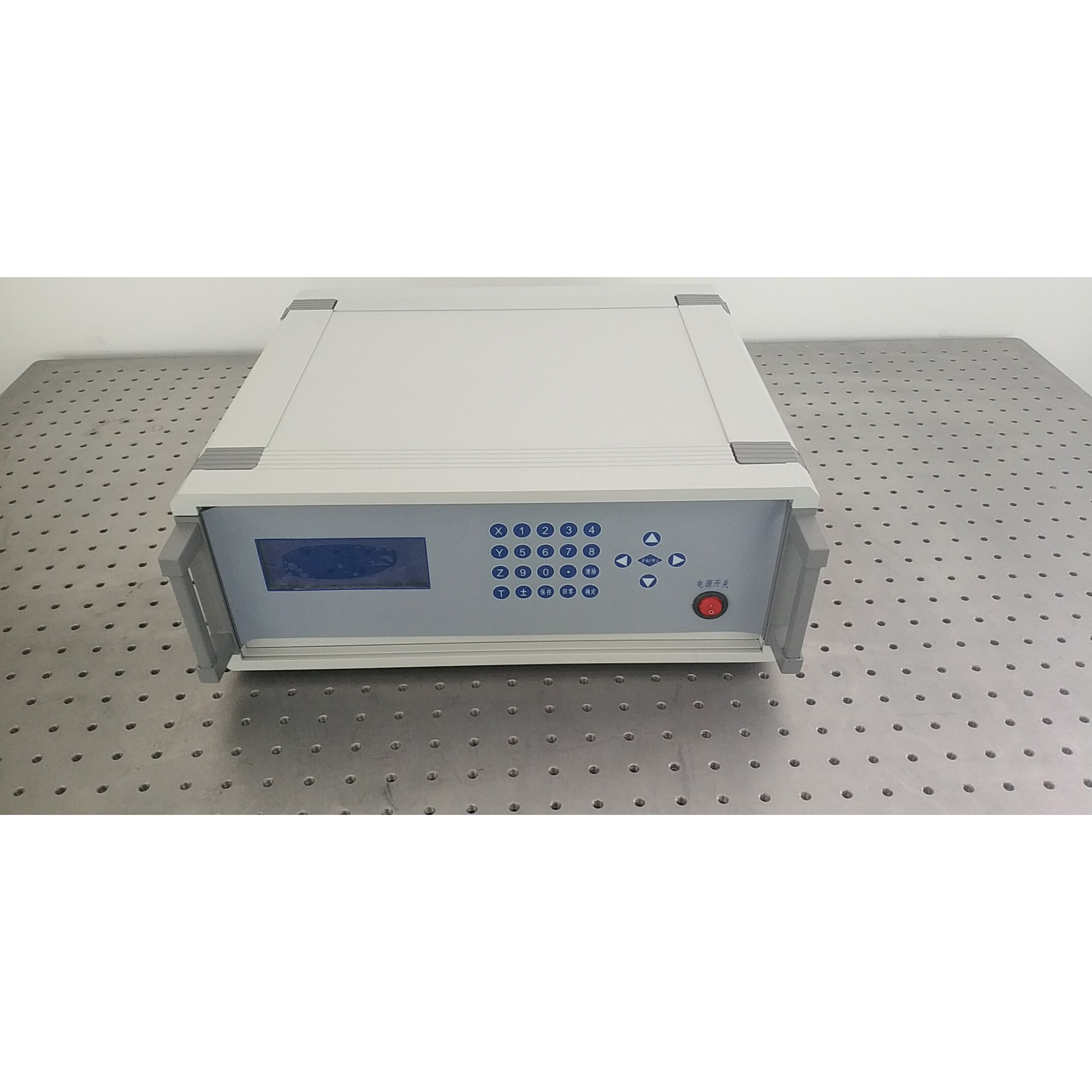

The J200MC motion Controller provides four channels of pulse and direction outpus.

And also provides 16 inputs ports and 16 outpus ports. The J200MC control core is made up of Cortex M3 and FPGA.

J200MC can perform the Line and circle movement in the 3D coordinate system,and also PTP movements.

RS232 serial interface is used for communicate with other devices or software, PC demo software, for example.

J200MC receives the commands sended by other devices through RS232 interface, decodes them and finished the control jobs.

User can use keyboard and joystick to control the motors too.

More information please email us to get Controller manual and working video.
