| Name: | Heavy Loading Motorized Goniometer Stage: J140GA15 |
|---|---|
Product Description

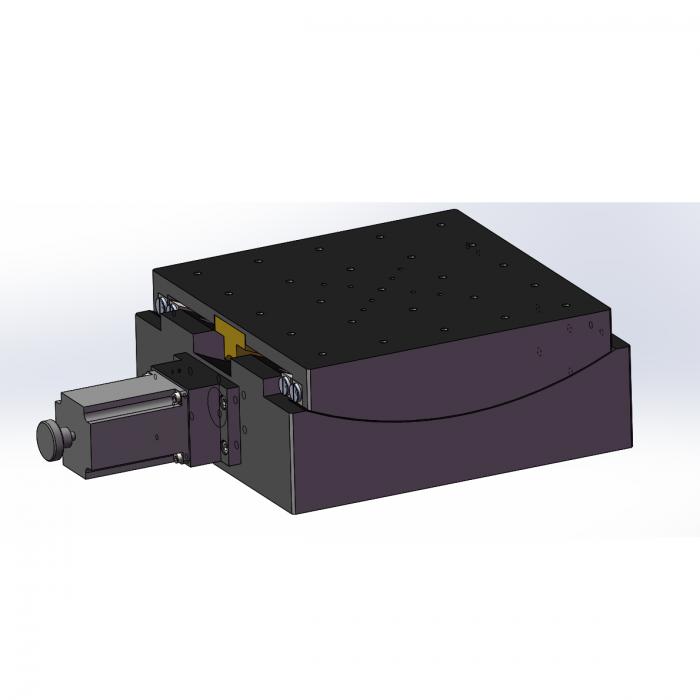

Heavy Loading Motorized Goniometer Stage
Production Features:
*Use rigidity V guide with high accuracy and abrasive resistance
*Worm gear transmission for Goniometer Stage high repeatability and moving smoothly.
*High rotary center of Goniometer Stage for big dimension object
*Apply to horizontal or vertical use
*With limited switches on the both sides
Model Number | J140GA15-250 | J140GA15-370 |
Angle Range | ±15° | |
Table Dimension | 250*250mm | 340*250mm |
Transmission Ratio | 610:1 | 870:1 |
Guide | V guide | V guide |
Stepper motor(1.8) | 57 motor, 2.4A | |
Surface Treatment | Black- Anodized | |
Loading | 50kg | |
Resolution | 0.00296° (No Subdivision) | |

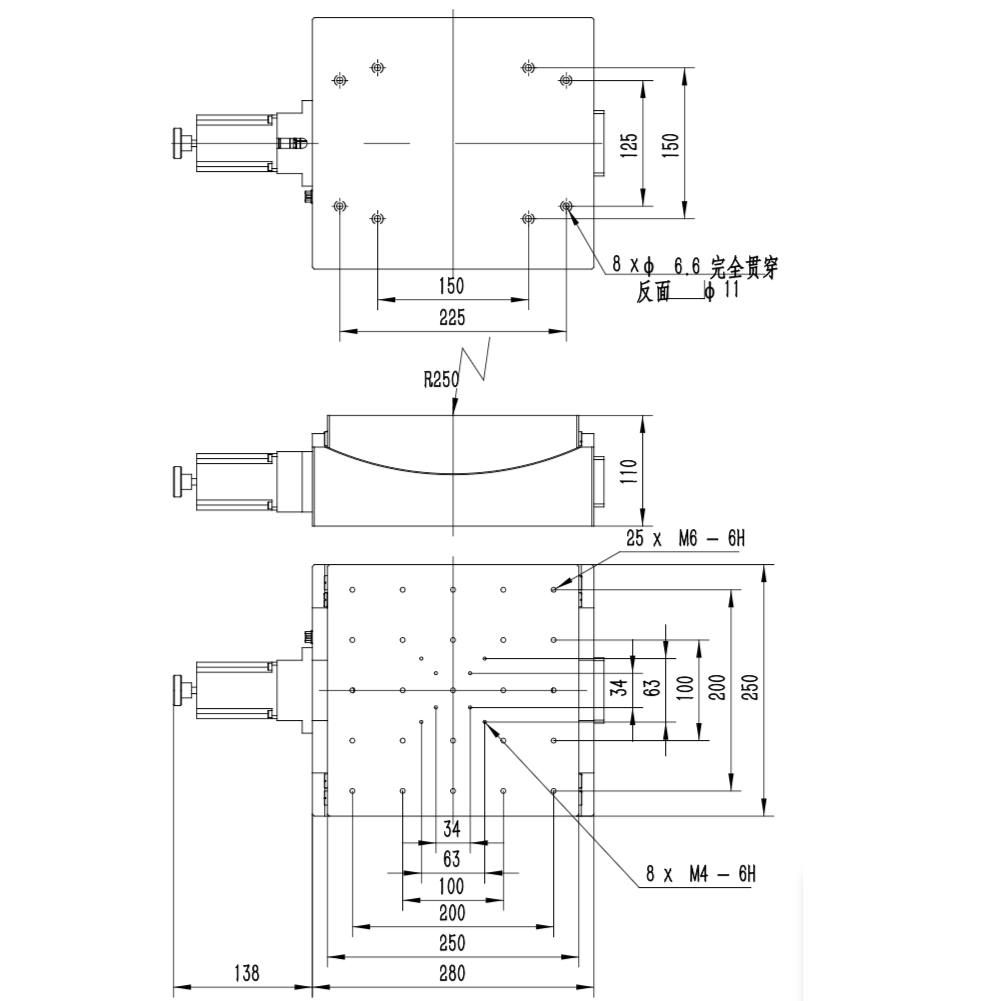

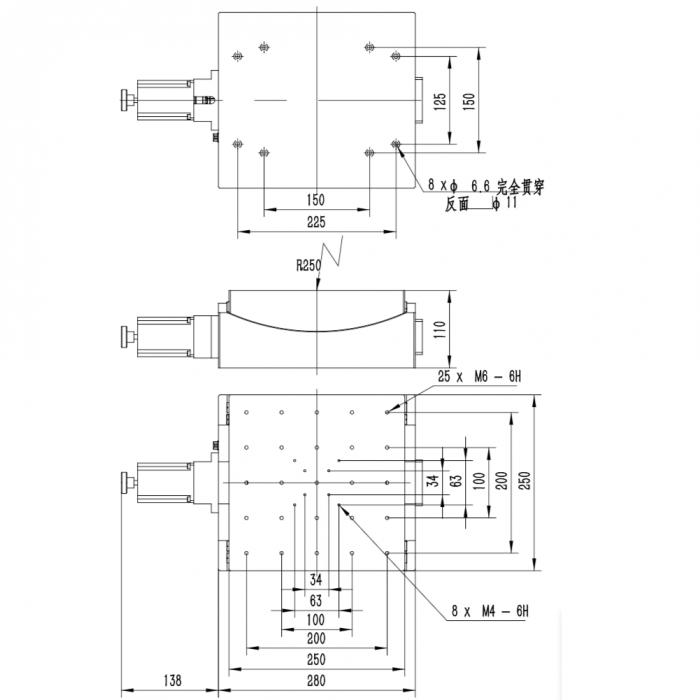

Goniometer Stage 5.png" width="806" height="858" style="width: 806px; height: 858px;"/>
