| Name: | Motorized Robot Linear Translation Stages: J60S-J270S |
|---|---|
Product Description

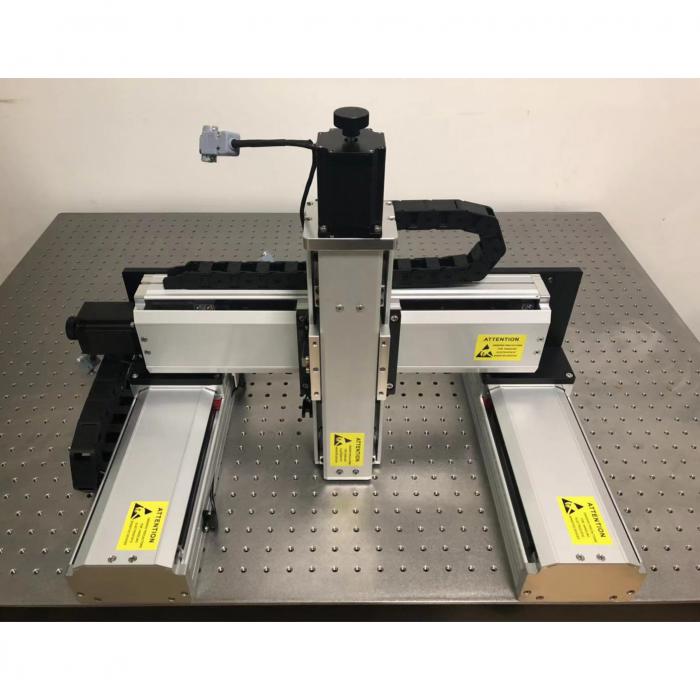

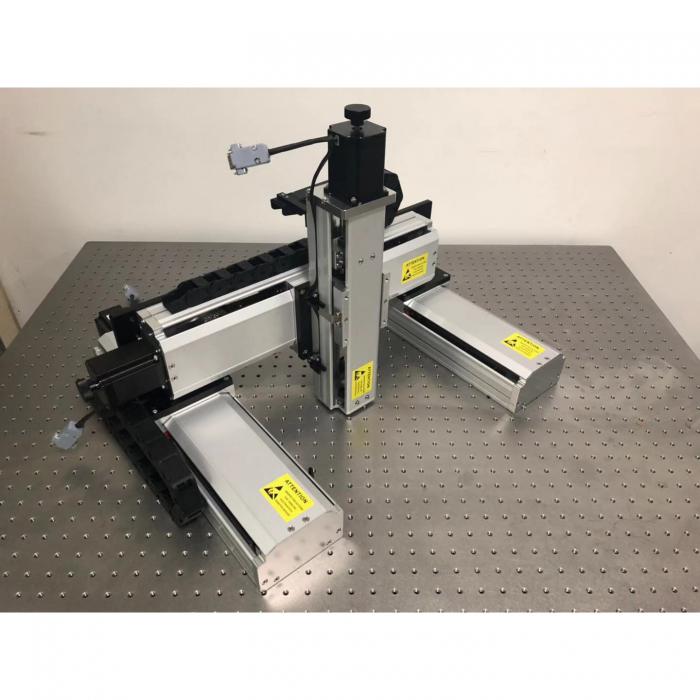

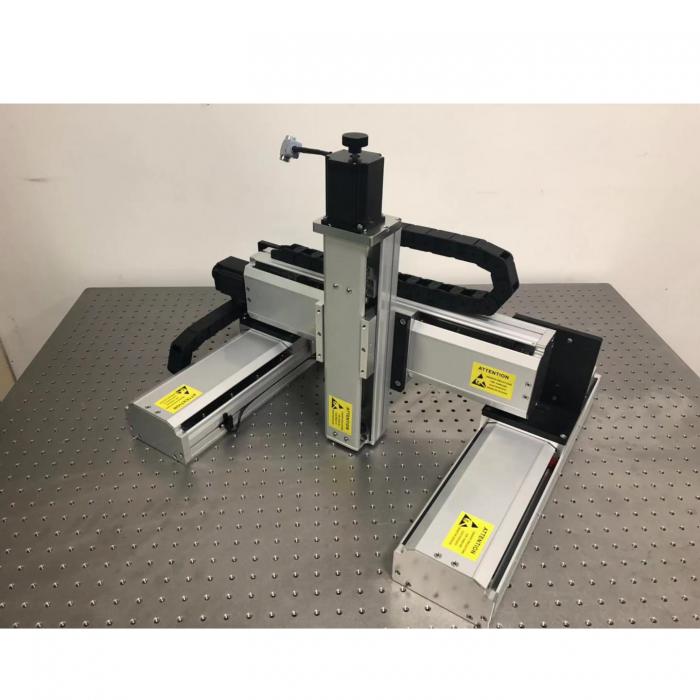

Motorized Robot Linear Translation Stages
Model Number | J60S50-900F01610 | J85S50-1200F01610 | J120S50-1500F01610 | J136S50-1800F01610 |
Travel Range | 50- 900mm | 50- 1200mm | 50- 1500mm | 50- 1800mm |
Table Dimension | 65*65mm | 90*85mm | 120*120mm | 140*136mm |
Guide Rail | Square Guide | |||
Screw Type | C7 | |||
Motor | 57 | |||
Material | Aluminum | |||
Surface Treatment | Natural Color | |||
Horizontal Loading | 15kg | 20kg | 50kg | 100kg |
Max Speed | 100mm/s | |||
Resolution | 20μm | |||
Repeatability | ±0.01mm | |||
Model Number | J178S50-2000F01610 | J210S50-2900F01610 | J270S50-2900F01610 |
Travel Range | 50- 900mm | 50- 1200mm | 50- 1500mm |
Table Dimension | 65*65mm | 90*85mm | 120*120mm |
Guide Rail | Square Guide | ||
Screw Type | C7 | ||
Motor | 57 | ||
Material | Aluminum | ||
Surface Treatment | Natural Color | ||
Horizontal Loading | 15kg | 20kg | 50kg |
Max Speed | 100mm/s | ||
Resolution | 20μm | ||
Repeatability | ±0.01mm | ||
