| Name: | Motorized Lab Jack: J04DS10 |
|---|---|
Product Description

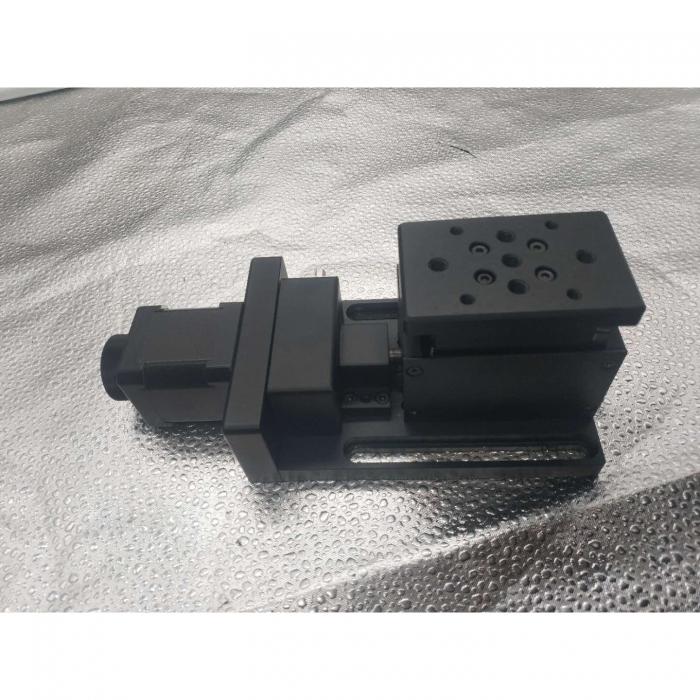

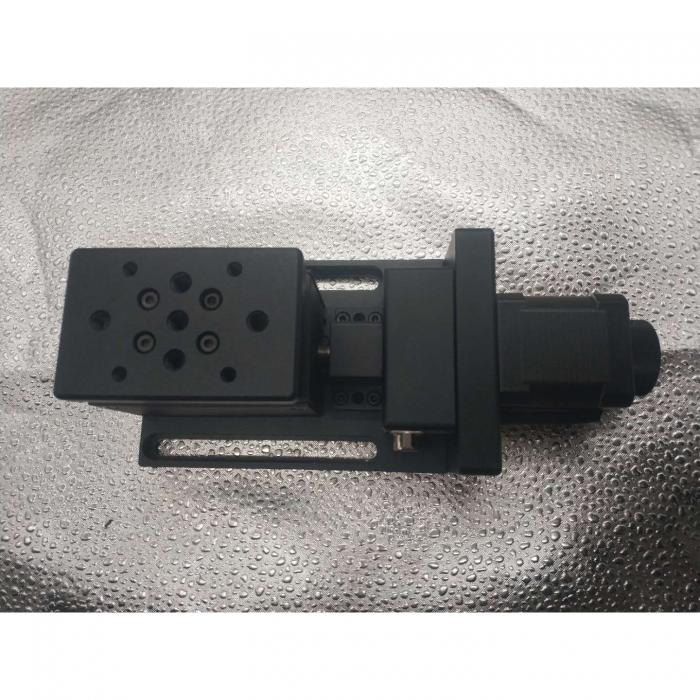

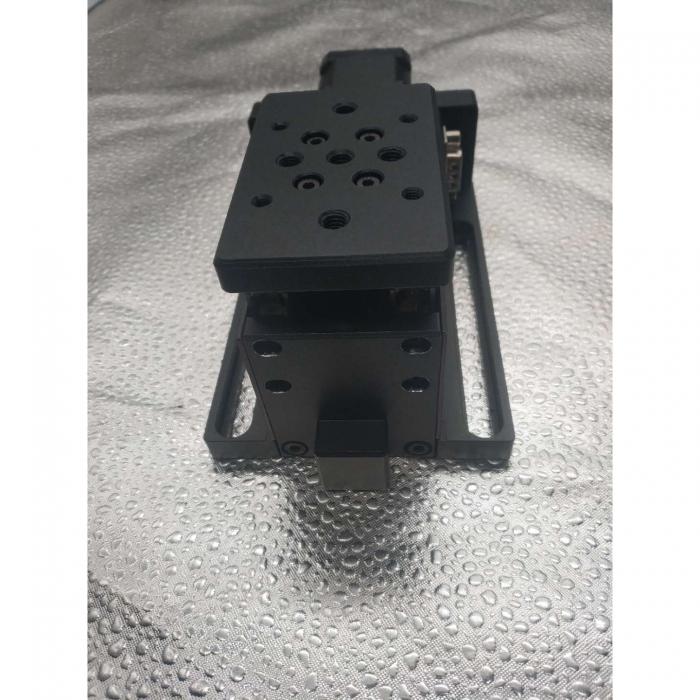

Motorized Lab Jack, Travel 10mm
Features:
*Regular lab jack set with stepper motors and RS232 interfaces, can connect with motion controller conveniently.
*High accuracy cross-roller guide for high performance and smooth moving
*Mounting holes both on the top and bottom of table for combine with other stages easily
*The lab jack can be redesigned.
Model Number | J04DS10 |
Travel | 10mm |
Dimension | 50mmx74mm |
Driver | Ball Screw |
Guide | Sliding Guide |
Stepper Motor（1.8°） | SST42D2121 |
Material | Aluminum |
Surface Treatment | Black-Anodized |
Loading | 10kg |
Weight | 1.5kg |
Min Adjustment | 5μm（non-MS drive） 0.25μm（20-MS drive） |
Max Speed | 5mm/sec |
Repeatability | 7μm |
Backlash | 3μm |
