| Name: | High Speed Motorized Rotary Table: J04RA130-P2-10/18 |
|---|---|
Product Description

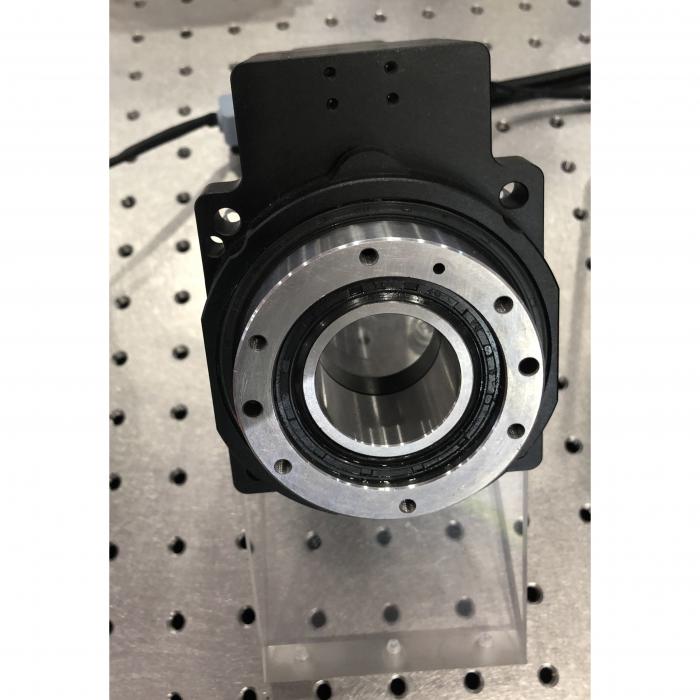

High Speed Motorized rotary table
Production Features:
*Use single pole spiral gear reduce the speed to increase the output torque. The repeatability excellent.
*Crossed roller bearing for rotary table move smooth and high loading.
*Servo motor or stepper motor for rotary table optional.
*Low working noise, whole sealing structure and don’t need change the lubricating oil.
Model Number | J04RA130-P2-10/18 | ||
Dimension | 130mm | ||
Motor | 200W Servo Motor | 400W Servo Motor | 57 Stepper Motor |
Loading in Center | 9kg/ 14kg (when reduction ratio 10:1/ 18: 1) | 12kg/ 14kg (when reduction ratio 10:1/ 18: 1) | 12kg/ 15kg (when reduction ratio 10:1/ 18: 1) |
Revolving Speed(r/min) | 150/ 100 (when reduction ratio 10:1/ 18: 1) | 150/ 100 (when reduction ratio 10:1/ 18: 1) | 60/ 30 (when reduction ratio 10:1/ 18: 1) |
Reduction Ratio | 10:1/ 18: 1 | ||
Bearing | Crossed Roller Bearing | ||
Repeatability | 0.05° | ||
Run Out of Top Plate | ±0.005° | ||
Concentricity | ±0.01° | ||
Parallelization | ±0.015° | ||
IP Grade | IP40 | ||
Accuracy Life | 3000 | ||
Weight | 5.5kg | ||
