Your Location : Home / Product Center >> Motorized Rotary Table >> High Speed Motorized Rotary Table: J04RA85-P2-05/10/15
| Name: | High Speed Motorized Rotary Table: J04RA85-P2-05/10/15 |
|---|---|
Product Description

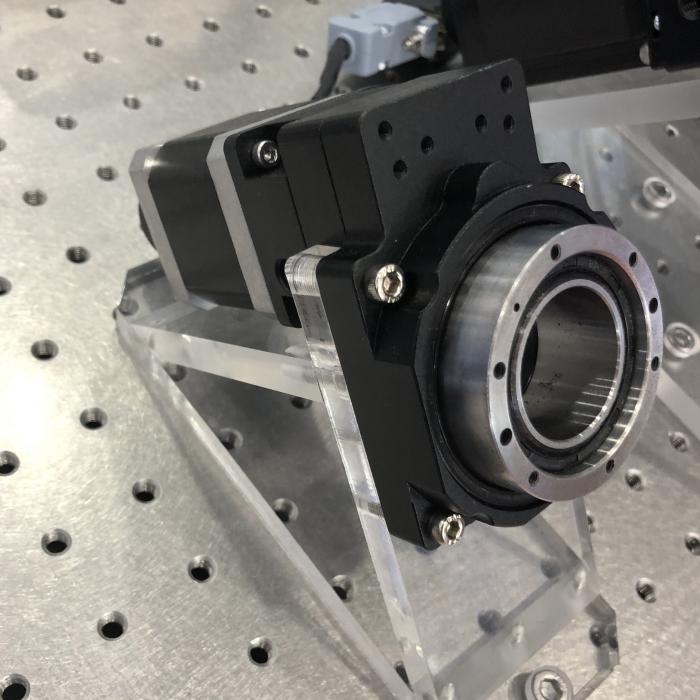

High Speed Motorized rotary table
Production Features:
*Use single pole spiral gear reduce the speed to increase the output torque. The repeatability excellent.
*Crossed roller bearing for move rotary table smooth and high loading.
*Servo motor or stepper motor for rotary table optional.
*Low working noise, whole sealing structure and don’t need change the lubricating oil.
Model Number | J04RA85-P2-05/10/15 | ||

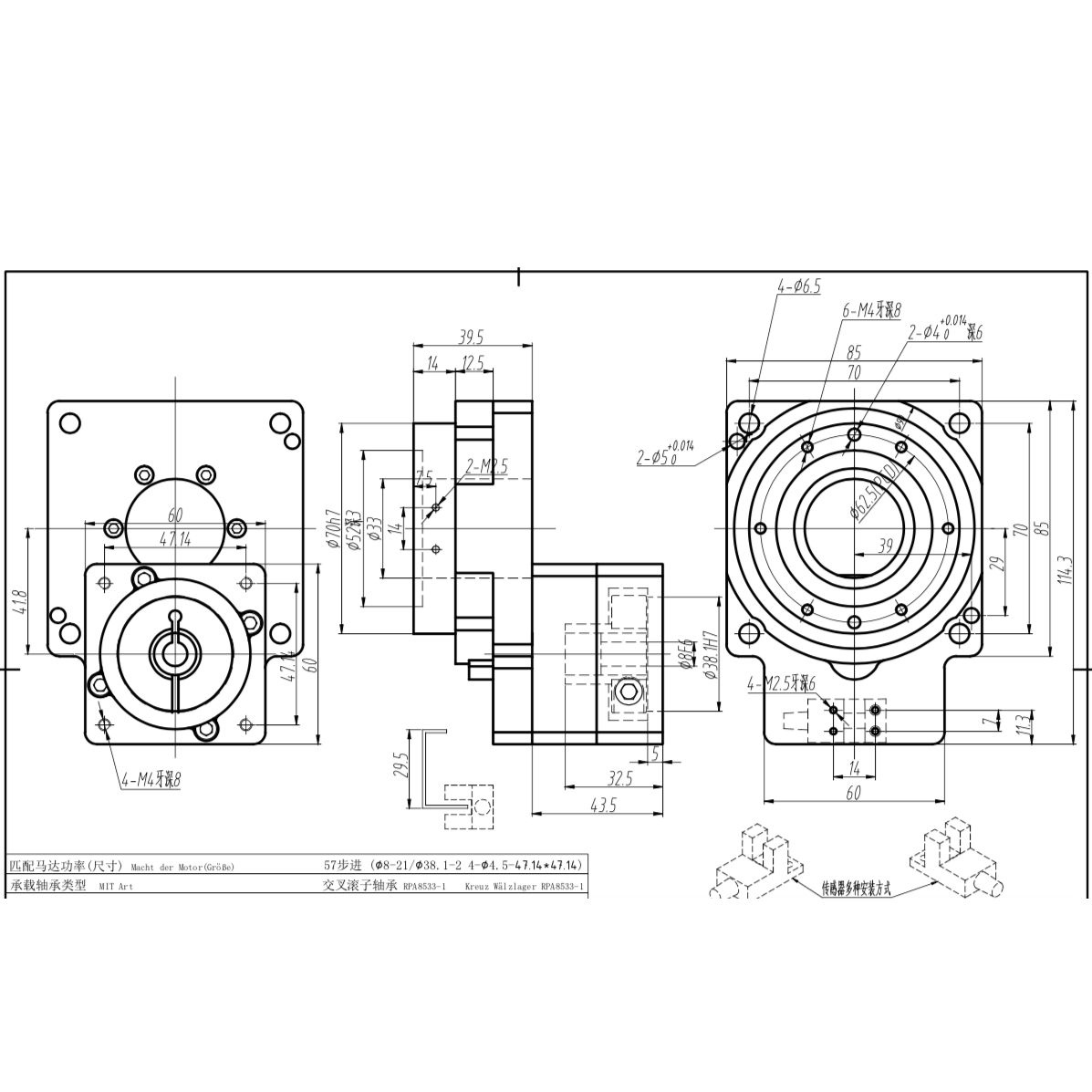

Dimension | 85mm | ||
Motor | 200W Servo Motor | 400W Servo Motor | 57 Stepper Motor |
Loading in Center | 2kg/ 3kg /10kg (when reduction ratio 5:1 or 10:1 or 15:1) | 10kg/ 12kg/ 14kg (when reduction ratio 5:1 or 10:1 or 15:1) | 10kg/ 12kg/ 14kg (when reduction ratio 5:1 or 10:1 or 15:1) |
Revolving Speed(r/min) | 200/ 150/ 120 (when reduction ratio 5:1 or 10:1 or 15:1) | 200/ 150/ 120 (when reduction ratio 5:1 or 10:1 or 15:1) | 100/ 60/ 40 (when reduction ratio 5:1 or 10:1 or 15:1) |
Reduction Ratio | 5:1/ 10:1/ 15:1 | ||
Bearing | Crossed Roller Bearing | ||
Repeatability | 0.05° | ||
Run Out of Top Plate | ±0.005° | ||
Concentricity | ±0.01° | ||
Parallelization | ±0.015° | ||
IP Grade | IP40 | ||
Accuracy Life | 3000 | ||
Weight | 3kg | ||
