Name: | High Speed Motorized Rotary Table: J04RA60-P2-05/10 |
---|---|
Product Description

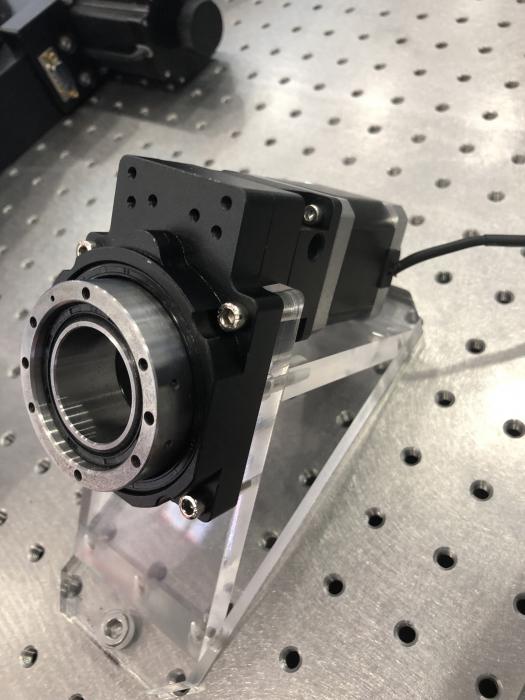

High Speed Motorized rotary table
Production Features:
*Use single pole spiral gear reduce the speed to increase the output torque. The repeatability excellent.
*Crossed roller bearing for rotary table move smooth and high loading.
*Servo motor or stepper motor for rotary table optional.
*Low working noise, whole sealing structure and don’t need change the lubricating oil.
Model Number | J04RA60-P2-05/10 | ||

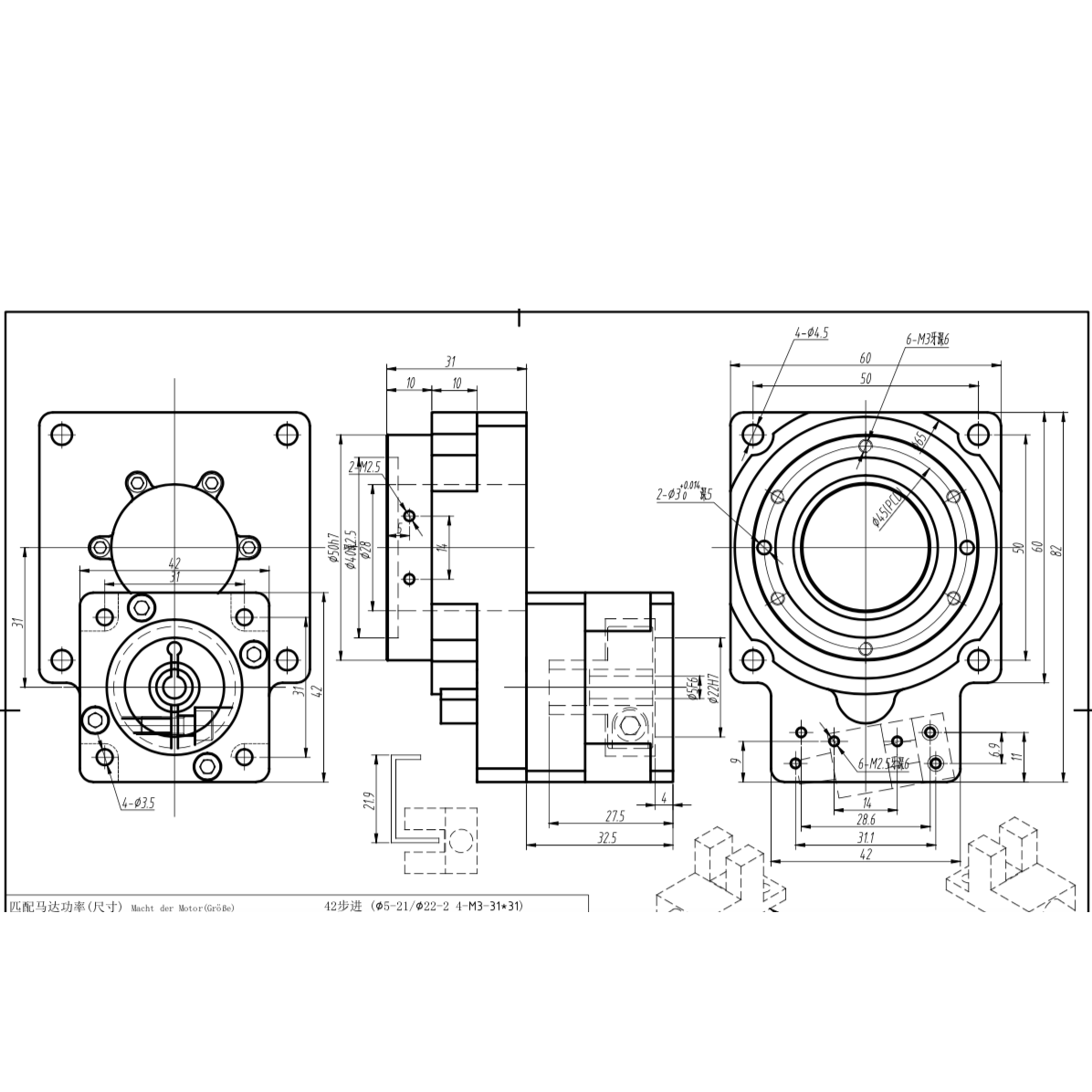

Dimension: | 60mm | ||
Motor | 50W Servo Motor | 100W Servo Motor | 42 Stepper Motor |
Loading in Center | 2kg/ 3kg (when reduction ratio 5:1 or 10:1) | 3kg/ 4kg | 3kg/ 4kg |
Revolving Speed(r/min) | 200/ 150 (when reduction ratio 5:1 or 10:1) | 200/ 150 | 100/ 70 |
Reduction Ratio | 5:1/ 10:1 | ||
Bearing | Crossed Roller Bearing | ||
Repeatability | 0.05° | ||
Run Out of Top Plate | ±0.005° | ||
Concentricity | ±0.01° | ||
Parallelization | ±0.015° | ||
IP Grade | IP40 | ||
Accuracy Life | 3000 | ||
Weight | 2kg |
