Name: | Motorized Rotary Table: J110DX350 |
---|---|
Product Description
Motorized rotary table (diameter 350mm)
Feature
*Use high accuracy and tin bronze worm gear, increase wear resistance
*Rotary rotary table base use wear-resistance material
*Integrated design, the rotary table bottom after accurate grinding could ensure parallelism
*High accuracy high rigidity structure ensure the rotary table clear aperture and the center of rotary table coaxially.
*Rotary stage could be use in horizontal, vertical, upside down.
Item Number | J110DX350 |
Angle Range | 360° |

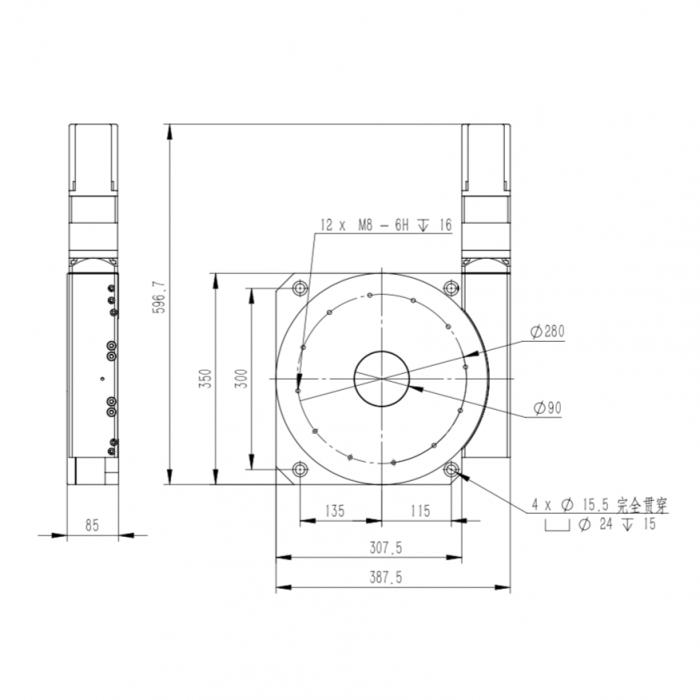

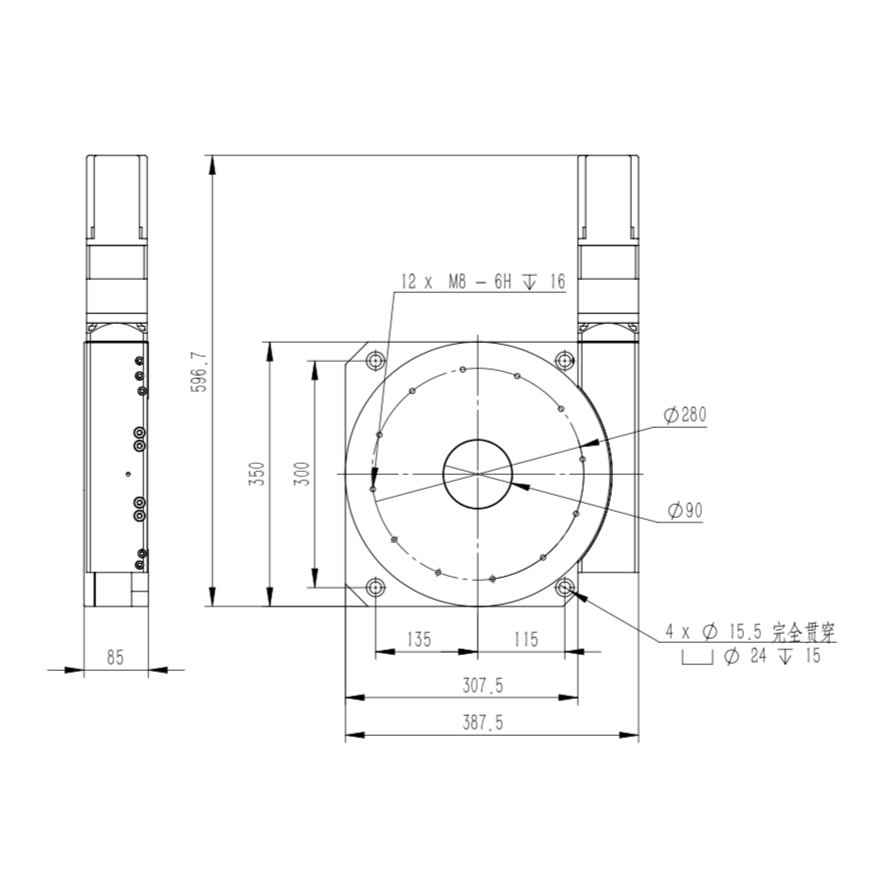

Dimension | diameter 350mm |
Clear Aperture | 90mm |
Worm Gear Ratio | 120:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Motor | 750W servo motor |
Material | Steel |
Surface Treatment | Black- Anodized |
Loading | 650kg |
Weight | 80kg |
Resolution | 0.015° non-driver 0.00075° 16 MS driver |
Speed | 15°/sec |
Repeatability | 0.005° |
Run Out of Top | 25μm |
Backlash | 0.005° |
Eccentricity | 0.005° |
Degree of Parallelization | 25μm |
Home Switch | Yes |
