Product Description

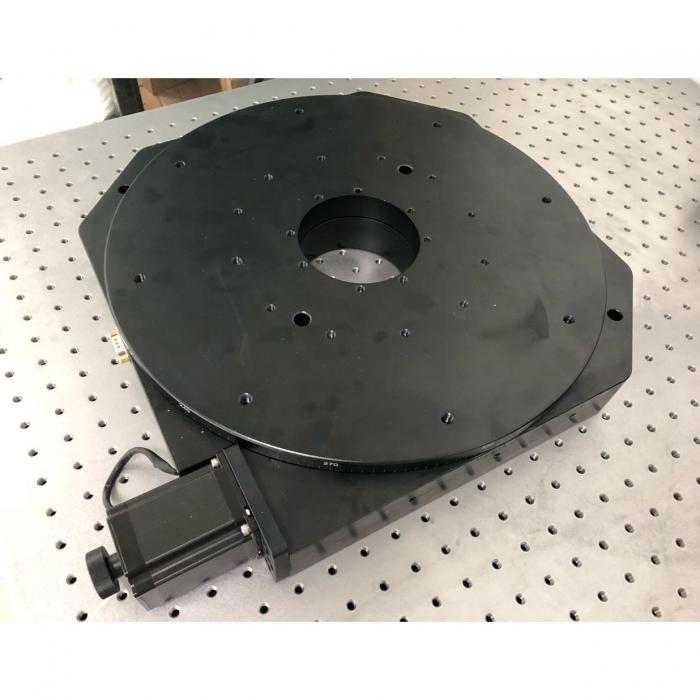

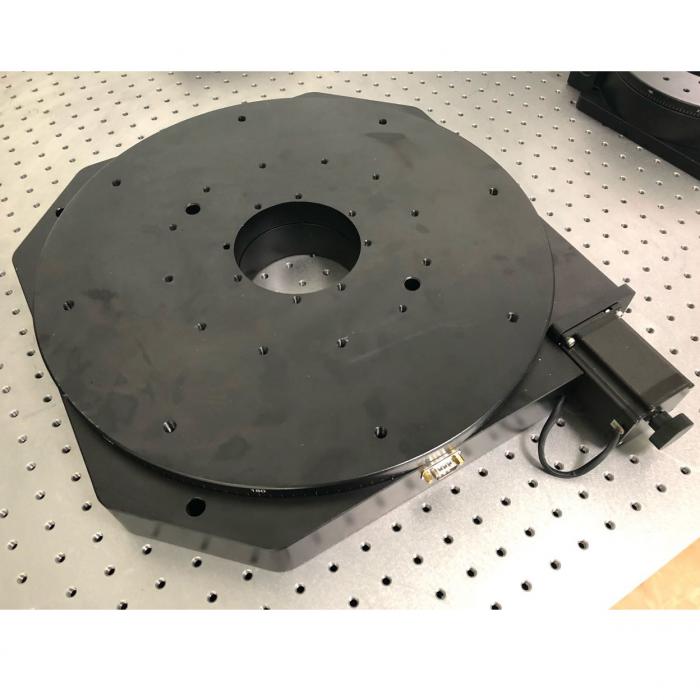

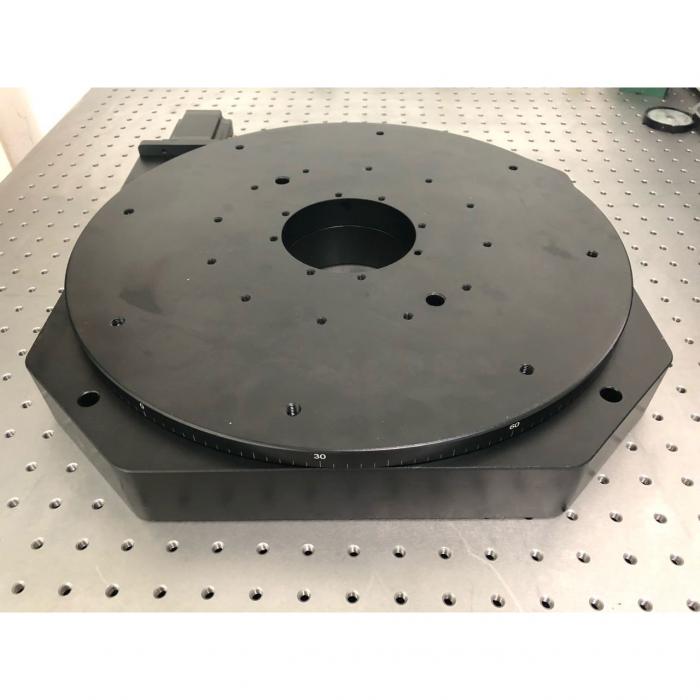

Motorized rotary table (diameter 400mm)
Feature
*Regular rotary table set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision Worm gear design for rotary table high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The rotary table could use in vertical and assemble with other stages
*400mm diameter dimension with clear aperture 100mm
Item Number | J04DX400 |
Angle Range | 360° |

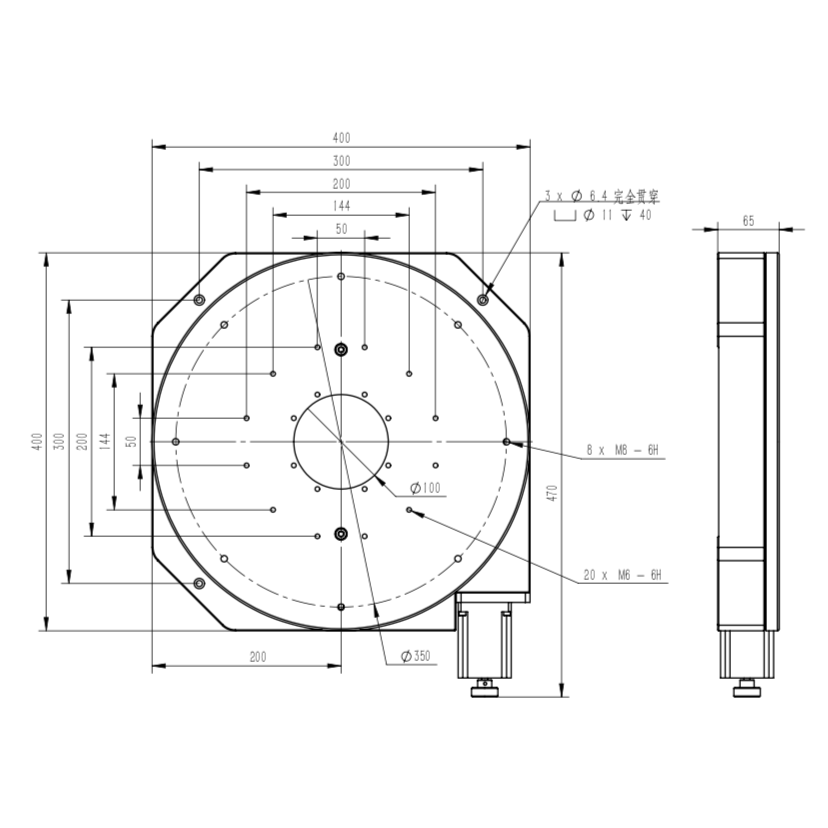

Dimension | diameter 400mm |
Clear Aperture | 100mm |
Worm Gear Ratio | 288:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Working Current | 2.4A |
Stepper Motor(1.8°) | 57 Stepper motor |
Material | Aluminum |
Surface Treatment | Black- Anodized |
Loading | 120kg |
Weight | 21kg |
Resolution | 0.0025° non-driver 0.000125° 16 MS driver |
Speed | 5°/sec |
Repeatability | 0.002° |
Run Out of Top | 20μm |
Backlash | 0.005° |
Eccentricity | 0.005° |
Degree of Parallelization | 120μm |
Home Switch | Yes |
