| Name: | Motorized Rotary Table: J03DX210 |
|---|---|
Product Description

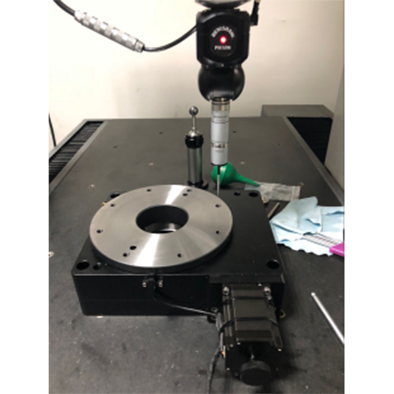

Motorized Rotary table (diameter 210mm)
Feature
*Regular rotary table set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision stainless steel Worm gear design for high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The rotary table could use in vertical and assemble with other stages
Item Number | J03DX210 |
Angle Range | 360° |

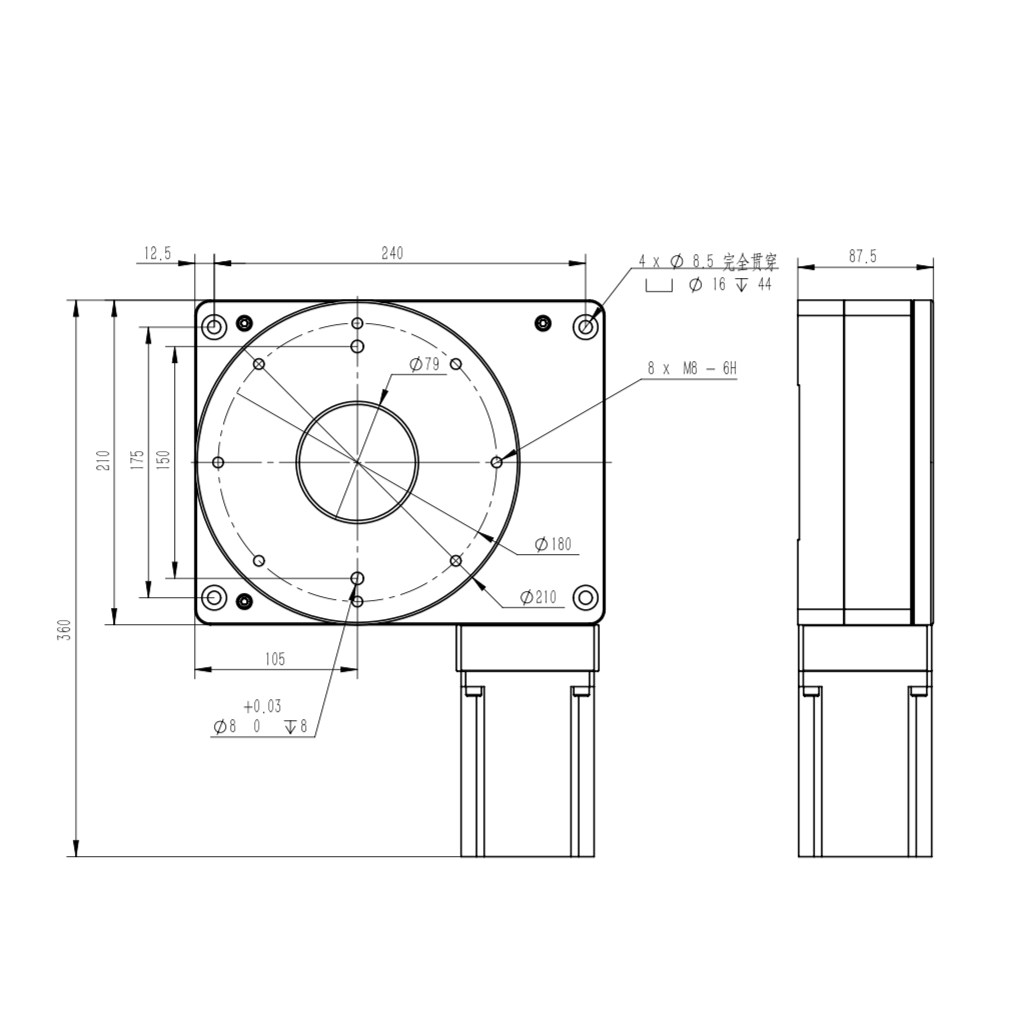

Dimension | diameter 210mm |
Clear Aperture | 75mm |
Worm Gear Ratio | 120:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Working Current | 4.2A |
Stepper Motor(1.8°) | 86 Stepper motor |
Material | Aluminum |
Surface Treatment | Black- Anodized |
Loading | 250kg |
Weight | 30kg |
Resolution | 0.015° non-driver 0.00075° 16 MS driver |
Speed | 25°/sec |
Repeatability | 0.005° |
Run Out of Top | 10μm |
Backlash | 0.005° |
Eccentricity | 0.005° |
Degree of Parallelization | 80μm |
Home Switch | Yes |
