Name:Heavy Loading Motorized Goniometer Stage: J04DJ15

Product Description

Motorized Goniometer Stages, Angle Range +/-15°



Features:

*Regular goniometer stage set with stepper motor and RS232 interface, can connect with motion controller convenient.

*Worm gear structure ensure the goniometer stage with high loading and accuracy

*The mounting holes both on the top and bottom of goniometer stage which can combine with other stage easily

*Both of the two goniometer stages ends have limit switches and can change the motor into servo or redesign




Model  Number

J04DJ15

Angle  Range

+/-15°

Dimension

160x160mm

Transmission  Ratio

400:1

Height  of Rotation Center

139mm+/-0.2mm

Drive

Worm  Gear

Guide

Cross-roller  Guide

Stepper  Motor1.8°

SST57D2121

Material

Aluminum

Surface  Treatment

Black-Anodized

Loading

30kg

Weight

11kg

Resolution

0.007°non-MS Driver

1.3”  20-MS Driver

Accuracy  of Rotation Center

0.03mm

Speed

7°/sec

Repeatability

+/-3”

Accuracy

+/-8”

Backlash

+/-3”

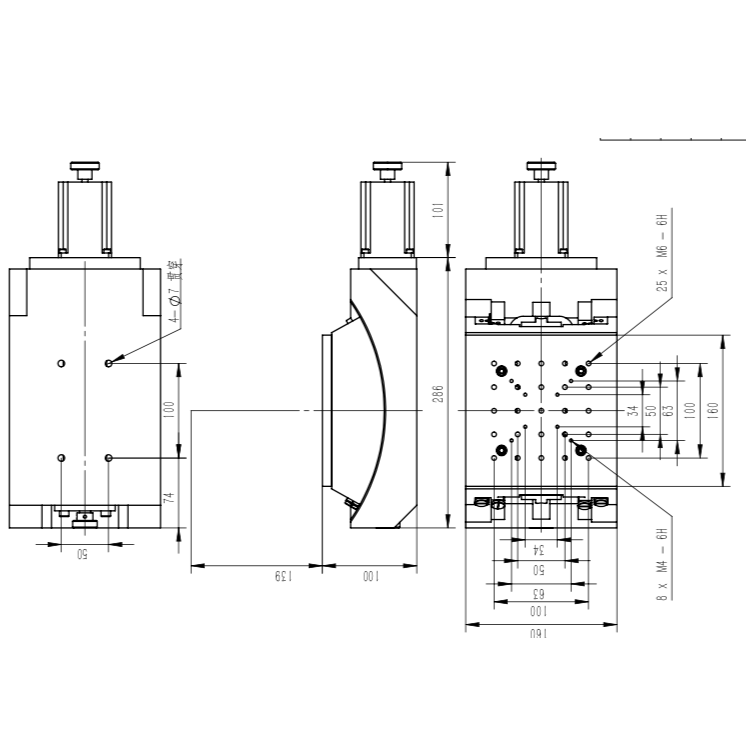

motorized goniometer stage J04DJ15.png
