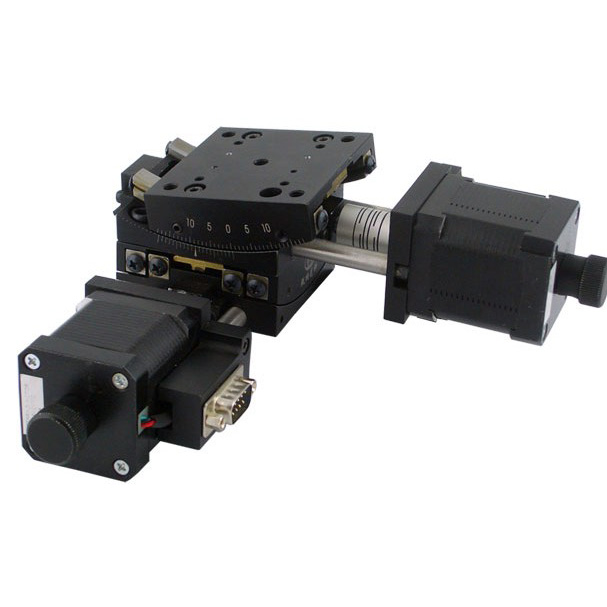

Mini Motorized Goniometer Stages,
Angle Range +/-15°
Features:
*Regular Goniometer Stage set with stepper motor and RS232 interface, can connect with motion
controller convenient.
*Worm
gear structure ensure the Goniometer Stage with high loading and accuracy
*The
mounting holes both on the top and bottom of Goniometer Stage which can combine with other
stage easily
*The Goniometer Stage design with the same rotation centers when it use together with 01DJ10
*Both of the two Goniometer Stage ends have limit switches and can change the motor into servo or redesign
Model
Number | J02DJ15 |
Angle
Range | +/-15° |
Dimension | 65x65mm |
Transmission
Ratio | 252:1 |
Height
of Rotation Center | 50mm+/-0.2mm |
Drive | Worm
Gear |
Guide | Cross-roller
Guide |
Stepper
Motor（1.8°） | SST42D2121 |
Material | Aluminum |
Surface
Treatment | Black-Anodized |
Loading | 5kg |
Weight | 0.75kg |
Resolution | 0.005°（non-MS Driver） 1” （20-MS Driver） |
Accuracy
of Rotation Center | 0.03mm |
Speed | 7°/sec |
Repeatability | +/-4” |
Accuracy | +/-9” |
Backlash | +/-4” |

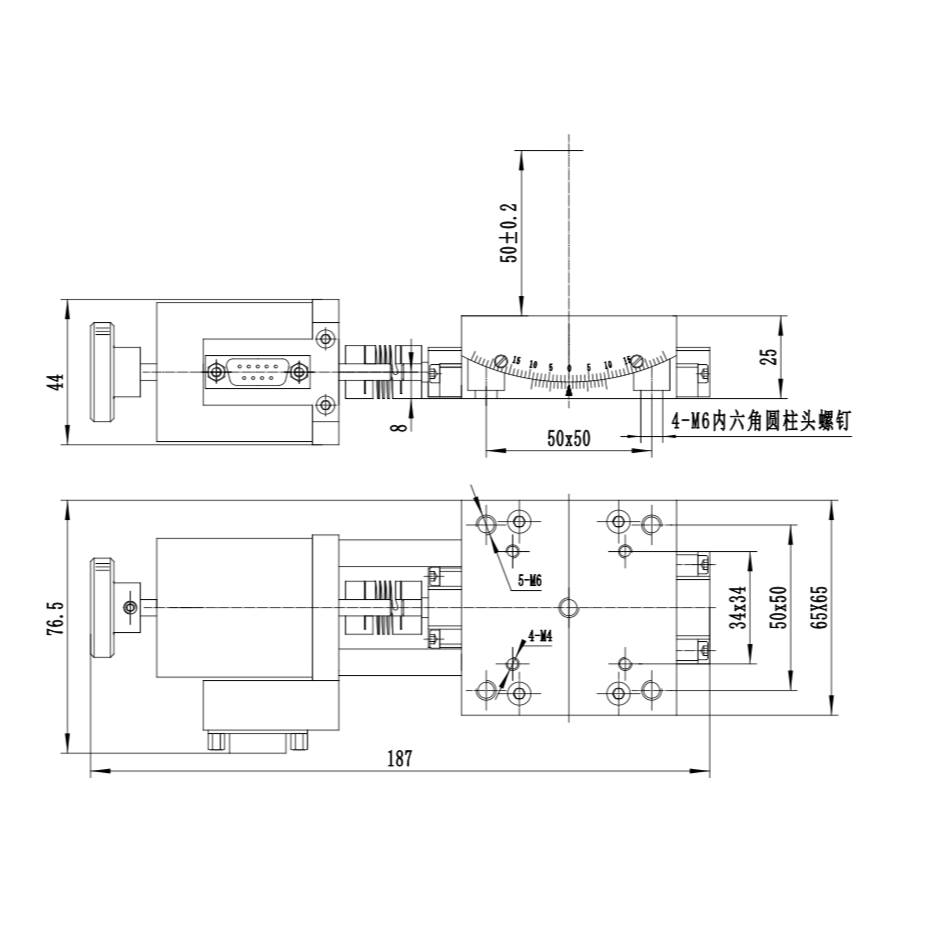

Goniometer Stage J02DJ15.png" width="780" height="758" style="width: 780px; height: 758px;"/>
