Product Description

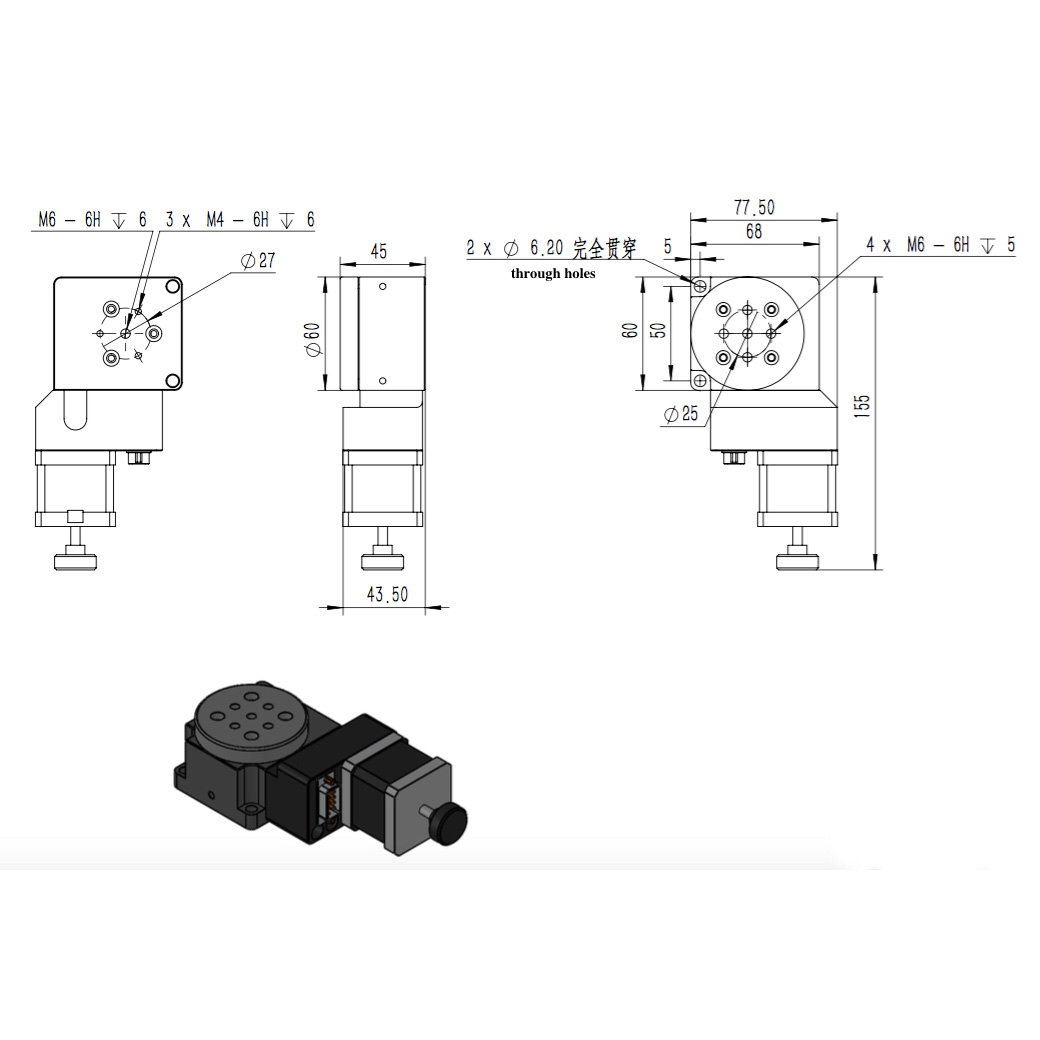

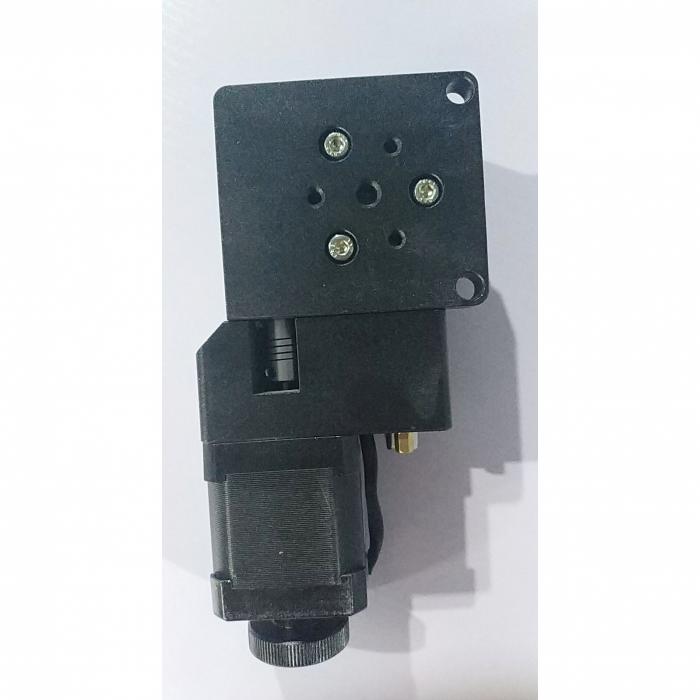

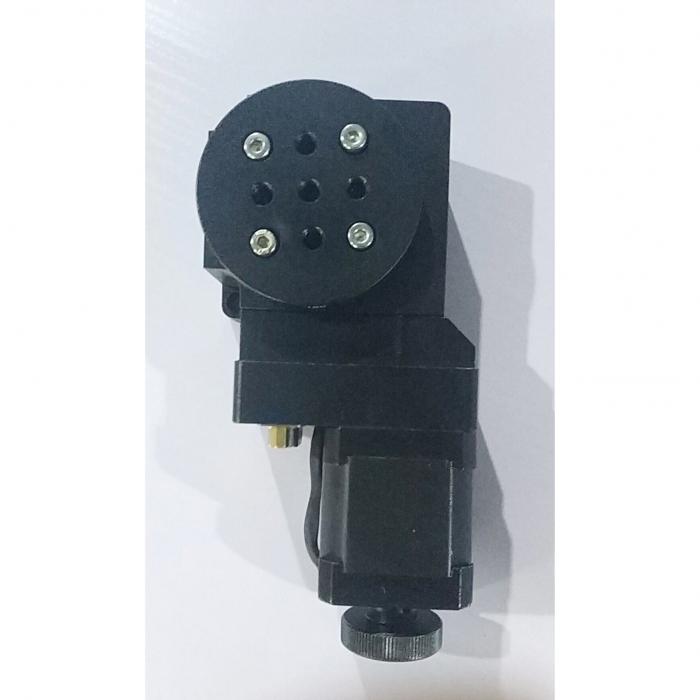

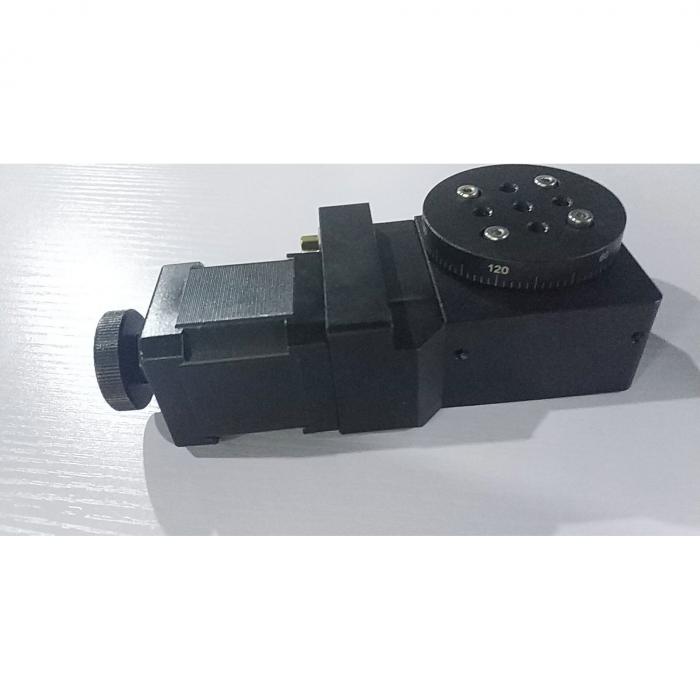

Mini Motorized Rotary Table (diameter 60mm)
Feature
*Regular rotary table set with stepper motor and RS232 interface, could connect with motion controller easily
*High precision Worm gear design for high accuracy, loading and long working time.
*Forward and reverse rotate are possible
*The rotary table could use in vertical and assemble with other stages
*60mm diameter dimension but without through hole
Item Number | J01DX60 |
Angle Range | 360° |
Dimension | diameter 60mm |
Worm Gear Ratio | 90:1 |
Drive Mechanism | Worm Gear |
Guide | Bearing |
Working Current | 1.7A |
Stepper Motor(1.8°) | 42 Stepper motor |
Material | Aluminum |
Surface Treatment | Black- Anodized |
Loading | 30kg |
Weight | 1.2kg |
Resolution | 0.02° non-driver 0.0014° 16 MS driver |
Speed | 50°/sec |
Repeatability | 0.005° |
Run Out of Top | 15μm |
Backlash | 0.005° |
Eccentricity | 0.005° |
Degree of Parallelization | 80μm |
Home Switch | No |
