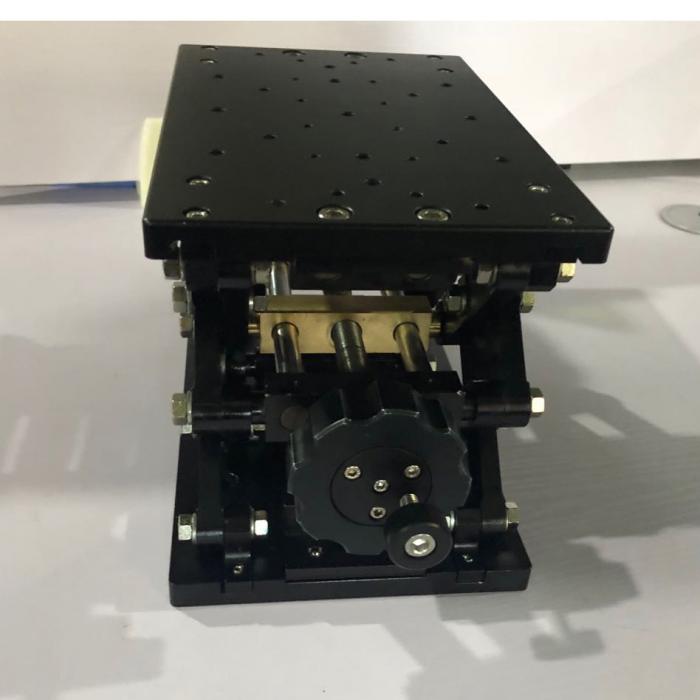

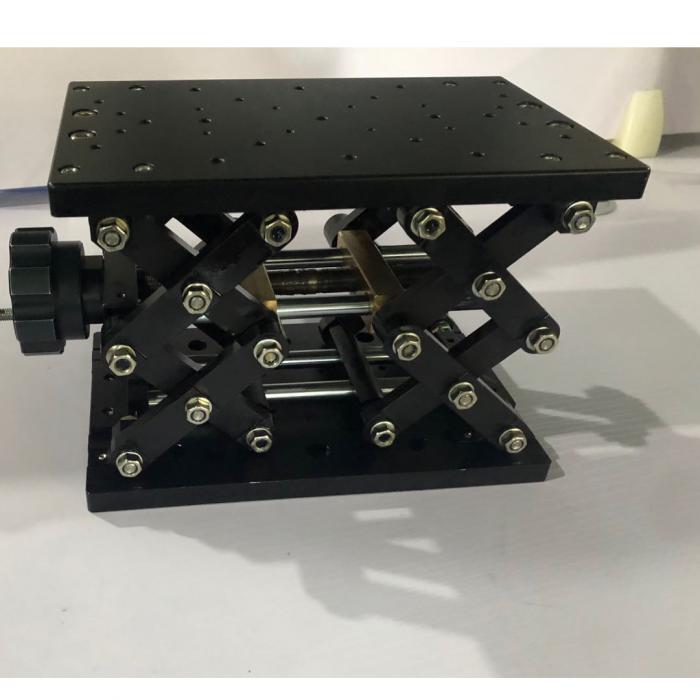

Name: | Manual Lab Jack: J09SS120 |
---|---|
Product Description
Manual Lab Jacks, Travel 120mm
Features:
*The lab jack suitable to use for long travel, high loading adjustment
*Crisscross structure, lead screw driver, double guide position for the smooth moving, high accuracy and loading
*Mounting holes both on lab jack top and bottom for combine with other stages easily
*Hand wheel locking can lock the position
Model Number | J09SS120 |

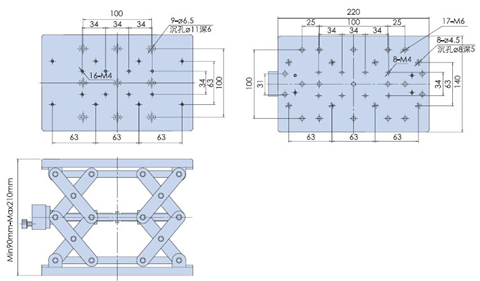

Dimension | 140mm x 220mm |
Drive | Lead Screw Drive |
Travel | 120mm |
Min Adjustment | 5μm |
Loading | 25kg |
Weight | 6kg |
Material | Aluminum |
Surface Treatment | Black-Anodized |
