Name:Manual Lab Jack: J08SS60

Product Description

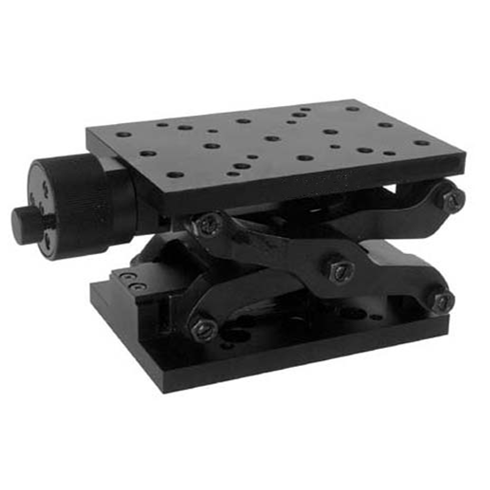

Manual Lab Jacks, Travel 60mm



Features:

*The lab jack suitable to use for long travel, high loading adjustment

*Crisscross structure, lead screw driver, double guide position for the smooth moving, high accuracy and loading

*Mounting holes both on lab jack top and bottom for combine with other stages easily

*Hand wheel locking can lock the position



Model Number

J08SS60

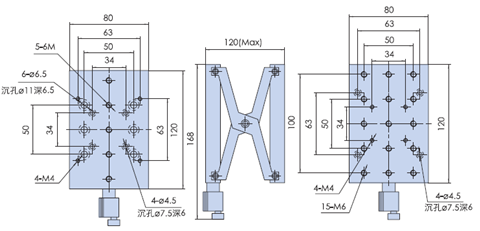

Dimension

120mm x 80mm

Drive

Lead Screw Drive

Travel

60mm

Min Adjustment

5μm

Loading

20kg

Loading

1.15kg

Material

Aluminum

Surface Treatment

Black-Anodized

lab scissor jack
