|Name:||Normal Motorized XYZ Rotating Table: J3WDX200-100|

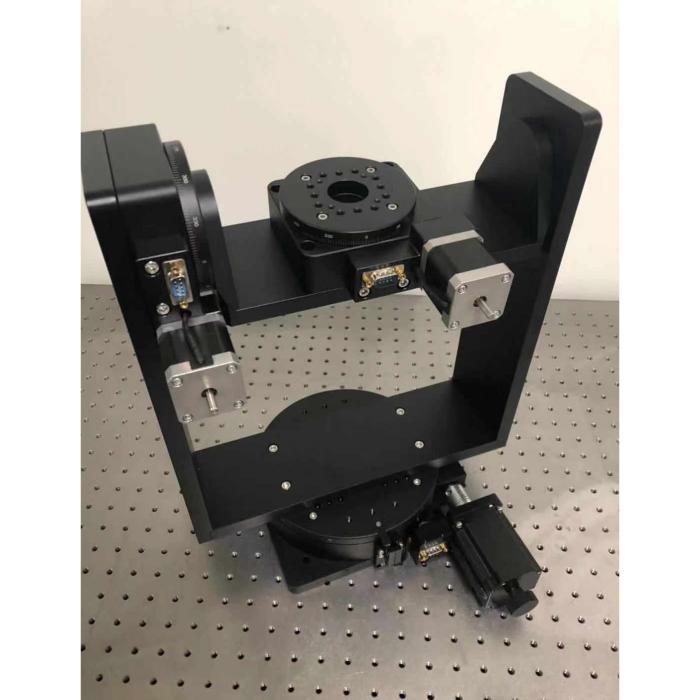

Normal Motorized XYZ Rotating Table
The xyz rotating table is used to position specimens and sensors in 3D space for simulation and calibration.
This custom motion system is built with standard rotation stages and provides a high-performance and high-accuracy positioning by the motors.
If you require the 360°of continuous rotation, the motion system must be designed by slip ring, like the picture showed below.
It will achieve the 360°continuous rotation for all three axes.
360°for X, Y, Z axis
Worm Gear Ratio
57 and 42
0.01°, Non-MS driver
0.0005°, 20MS driver
Run-out of top plate
